File Service overview
The File Service is a back-end service which manages source files and file versions, and provides facilities for file uploads and system metrics.
How the File Service works#
In the File Service, source files are stored as File types in a FileContainer and file versions are saved as FileVersion types.

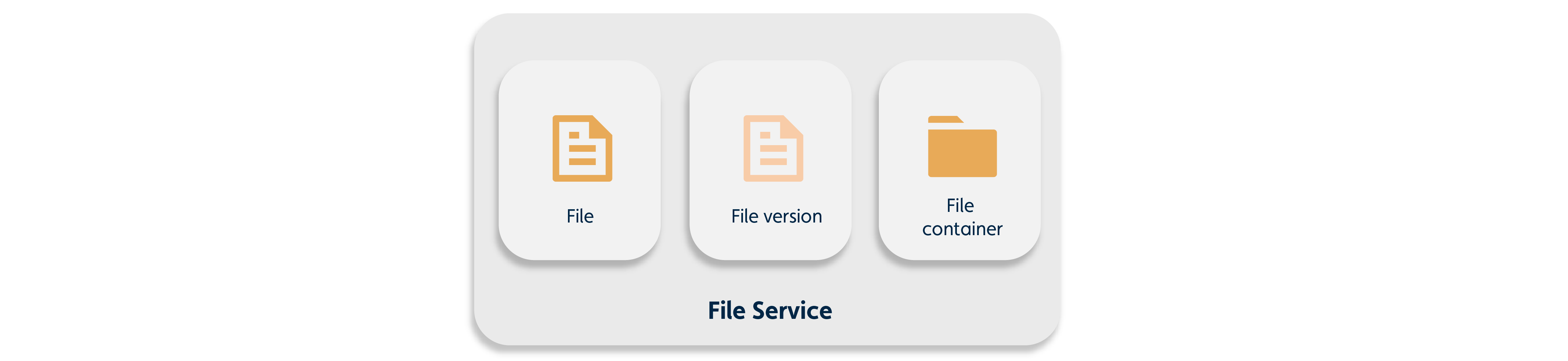

Figure: File Service components
A FileItem in the Item Service references a source File in the File Service. Source files are stored as a File type in the File Service.

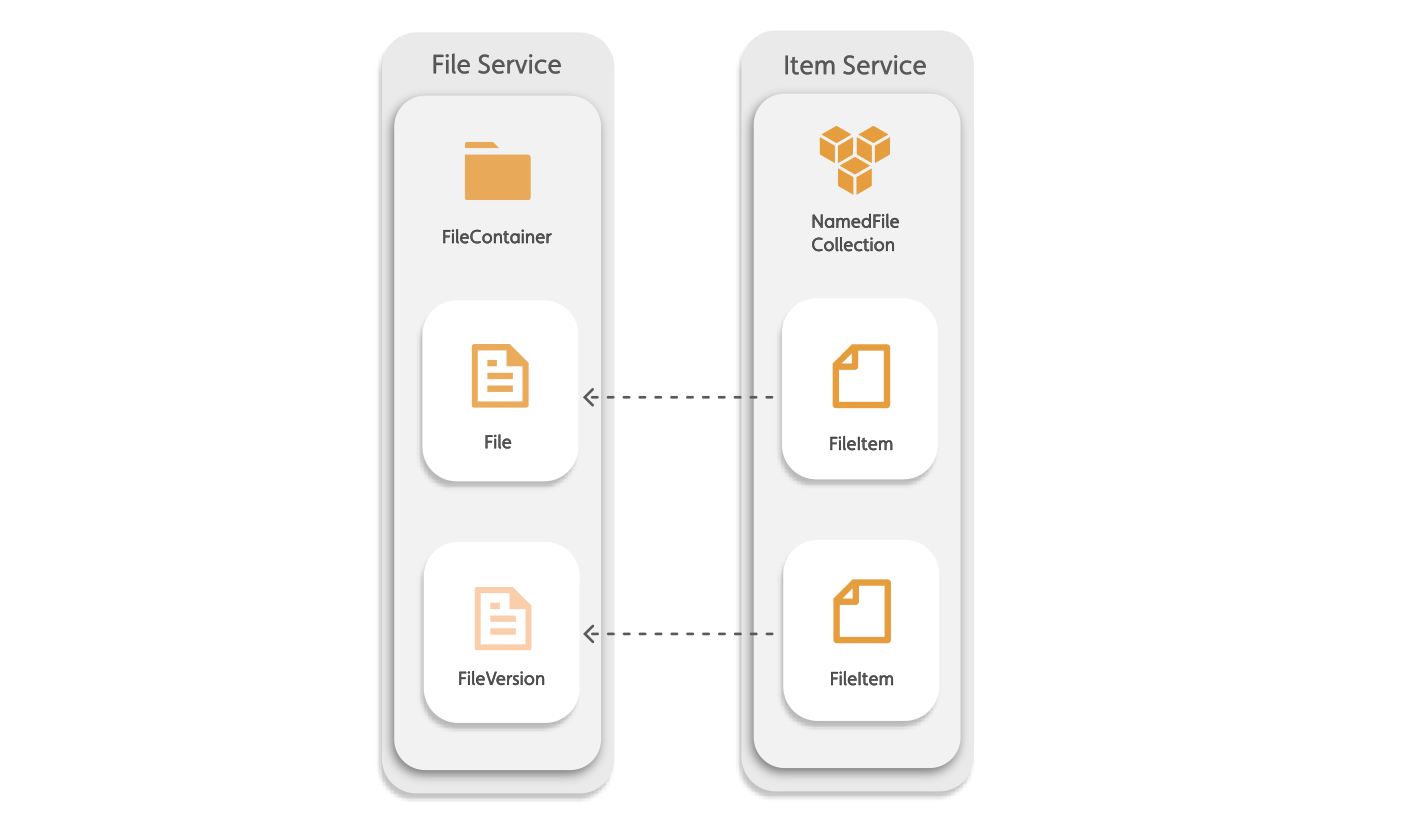

Figure: File item and source file reference
File Service relationships#
FileContainers have a parent-child relationship with File types and Files have a parent-child relationship with FileVersion types. FileContainers can also parent other FileContainers. A File can have one parent FileContainer.If a File is not attributed a parent FileContainer then the root folder becomes its parent FileContainer.
Figure: File Service parent-child hierarchy
| Parent | Child |
|---|---|
| Folder | File |
| Folder | Folder |
| File | File version |
Permissions#
In the File Service, you can apply permissions at the FileContainer and File level. Children inherit the permissions of their parent: a File inherits the permissions of its FileContainer and a FileVersion inherits the permissions of its parent File.

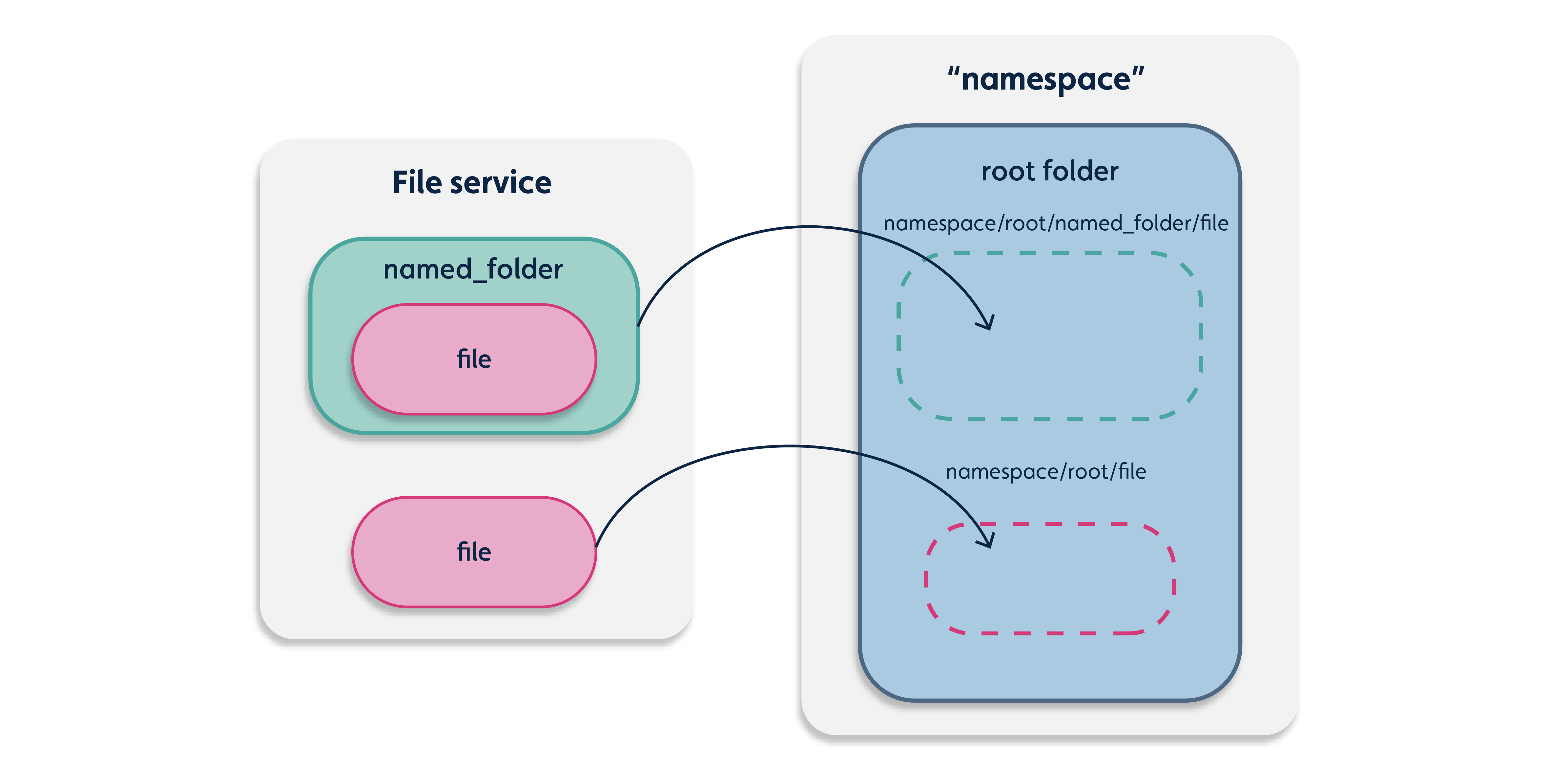

Namespaces and folders and files#
All FileContainers and Files must reference a namespace. When a namespace is created, it has a root FileContainer that contains any File or FileContainer you add to the namespace. If you add a File or FileContainer with no parent FileContainer, the namespace's root FileContainer by default is the parent.
Tagging and querying files and folders#
You can query Files and FileContainers by their properties as well as add custom key-value tags which can also be queried.
Resumable file uploads#
To upload large files to the File Service, you can upload the files in a resumable upload so that the upload can pause and resume as required with complete, progress, and error callback functions.
For more information, refer to the following API resources:
- Resumable File Upload in the REST API
- Resumable File Upload in the Javascript API
Image file thumbnails#
The File Service support thumbnail previews for image files.
Schema#
For more information on resource schemas, see the following table:
| Resource | Schema |
|---|---|
| File | File |
| File version | FileVersion |
| FileContainer | FileContainer |
Note: A file container is a higher-level representation of a folder.
Metrics Service#
The File Service now has a new Metrics Service feature which was introduced in Platform version 4.4. This feature can record system events related to the File Service and provide useful insights into the usage of a range of system resources.
To learn more about this new service, refer to Metrics Service overview.
File Service APIs#
Depending on the actions you want to complete, use the following APIs:
- File Service REST API
- Use the following JavaScript platform APIs:
- To manage source files and folders at the File Service level, see IafFileSvc
- To manage file items, collections, and folders in the item service at the file level, see the IafFile API.
Note: For additional file collection actions, see Named user collection and Named user item in the IafItemSvc.
- To manage folders and files at the folder level, see the IafFileContainer API.
Note: A file container is a higher level representation of a folder.
