Files page
The Reference App Files page demonstrates a user interface for interacting with a project's files and folders in the following ways:
- Navigate a project's folders and files using the folder navigation tree or by clicking through folders in the folder view
- Create, delete and update folders and files
- Search, filter, and sort a project's files and folders based on multiple properties such as creation date, last updated date, user, and size.
- View and edit file and folder object properties as well as add tags
- View text and Microsoft Office files in the IafDocViewer

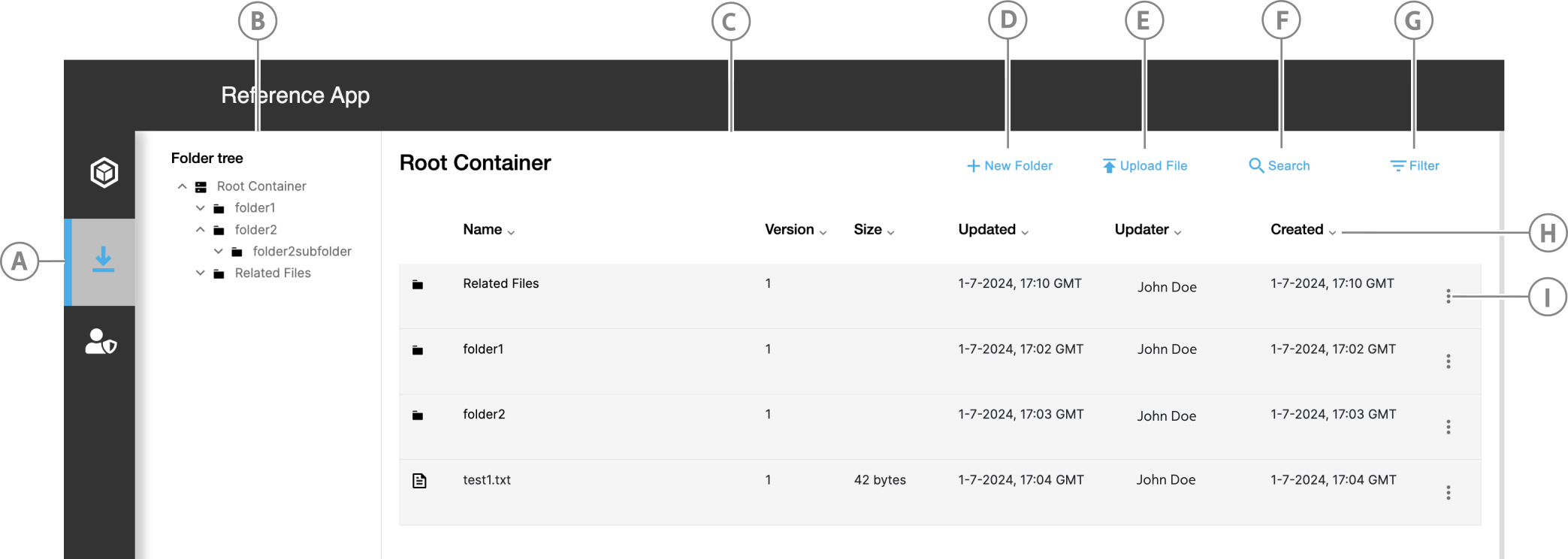

Figure: Files page overview
| Callout | Name | Description |
|---|---|---|
| A | Files page icon | Click to mount the file page |
| B | Navigation tree | Use the navigation tree to browse a project's folder structure quickly without losing the currently viewed folder in the folder view. Click a folder name to open it in the Folder view. |
| C | Folder view | Displays a folder's contents with metadata.To navigate a folder structure in the folder view, simply click a folder name to navigate down the hierarchy and click the back button to navigate back up the folder hierarchy. |
| D | New Folder | Click to create a new folder in the current folder and post it to the database as a NamedFileCollection. |
| E | Upload File button | Click to upload a new file to the current folder and post it to the database as a File and FileItem type. |
| F | Search button | Click to show the search input. |
| G | Filter button | Click to show the filter drop-down menus. |
| H | Sort twistie | Click a column's twistie to sort by that property; click it a second time to sort descending. |
| I | Actions icon | Click to view the actions available for that item. For more information, see File and folder actions. |
Folder structure#
Root Container#
On project set-up, a Root Container folder is created. All files and folders are created under this root folder.
Related Files#
Files uploaded for a specific model element in the Model Elements page or Model Navigator add to a Related Files subfolder.
Custom folders#
Users can create their own folder structure within the Root Container folder and add files that are not related to a specific element but are relevant to the project.

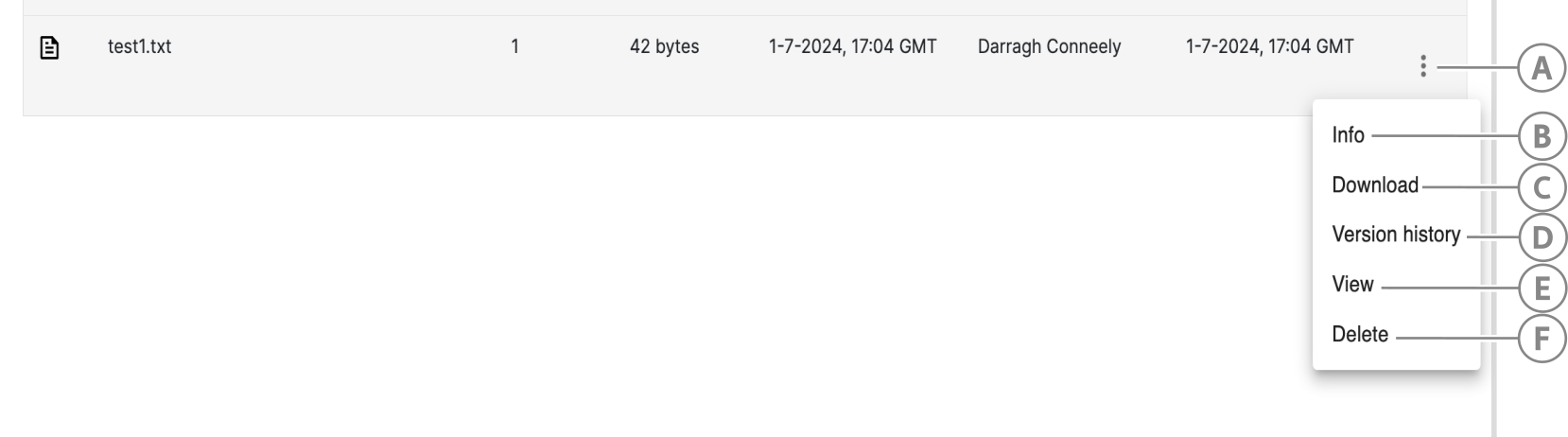

File and folder actions#
Click an item's Actions icon to view the actions available for that item, such as viewing its object properties, version history, file contents, or to download or delete the item.
| Callout | Name | Description | Files | Folders |
|---|---|---|---|---|
| A | Actions icon | Click to view actions for a given item | Yes | Yes |
| B | Info | View a folder or file's object properties, edit some properties, and add tags. | Yes | Yes |
| C | Download | Download a file to your local file system | Yes | No |
| D | Version history | View all FileItemVersions for a FileItem. You can view, download, and delete a version. | Yes | No |
| E | View | View a file in the IafDocViewer. You can view the following file types in the IafDocViewer: csv, jpg, png, gif, pdf, doc, docx, rtf, xls, xlsx, ppt, pptx, txt. | Yes | No |
| F | Delete | Delete a FileItem or NamedFileCollection. If a folder you delete has subcontents, a warning appears, indicating the subfolder and subfiles that will also delete. | Yes | Yes |

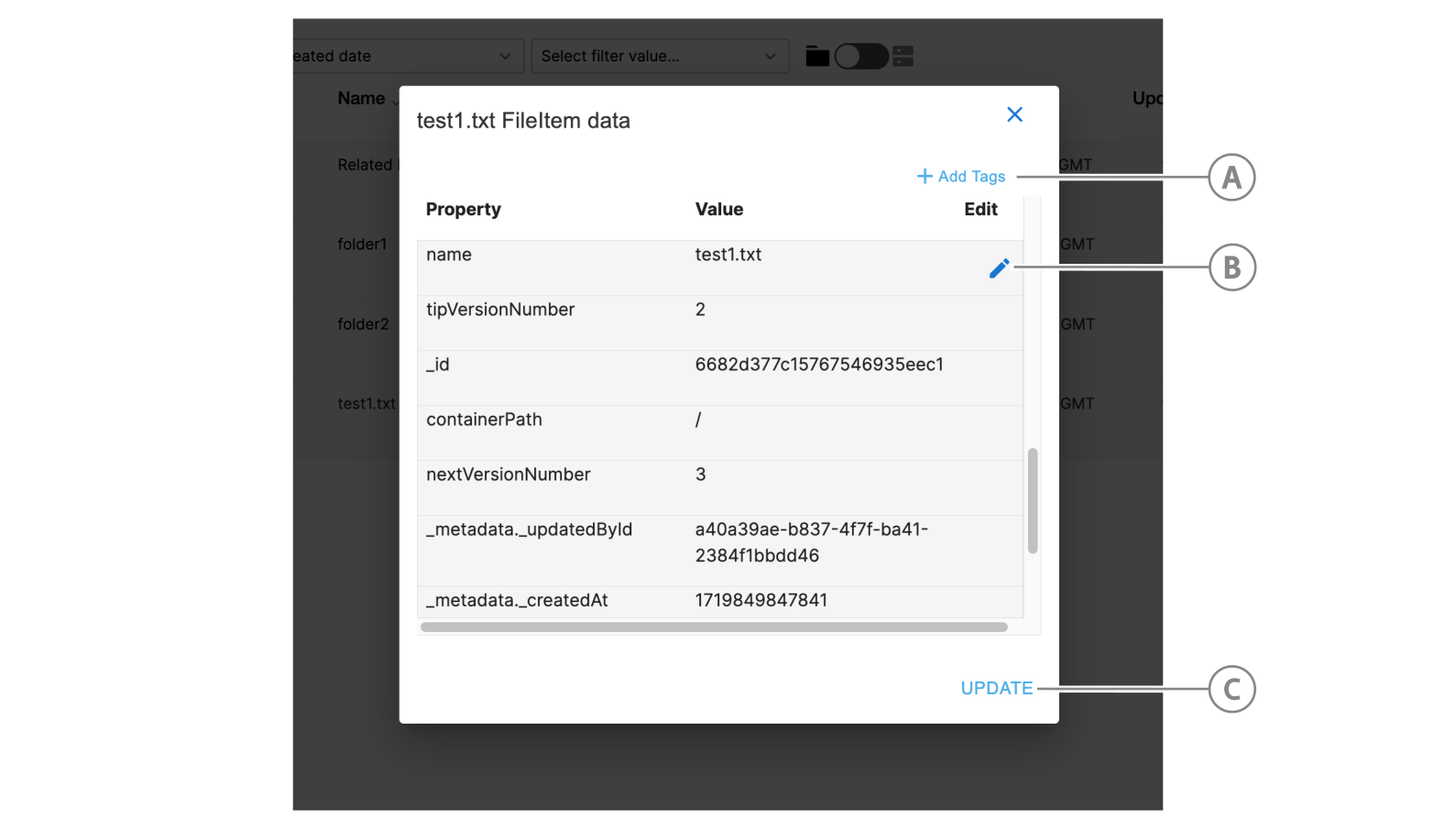

Info modal#
Use the Info modal to view an item's object properties, edit editable fields, and add or remove custom tags.
| Callout | Name | Description |
|---|---|---|
| A | Add Tags | Add or remove custom tags from the item. For more information, see Tags modal. |
| B | Edit icon | When you view a folder or file's object properties, you can edit properties with an edit button. When you save your changes, the working object updates. To update this in the database, click UPDATE. |
| C | UPDATE button | Click to post the working item to the database |

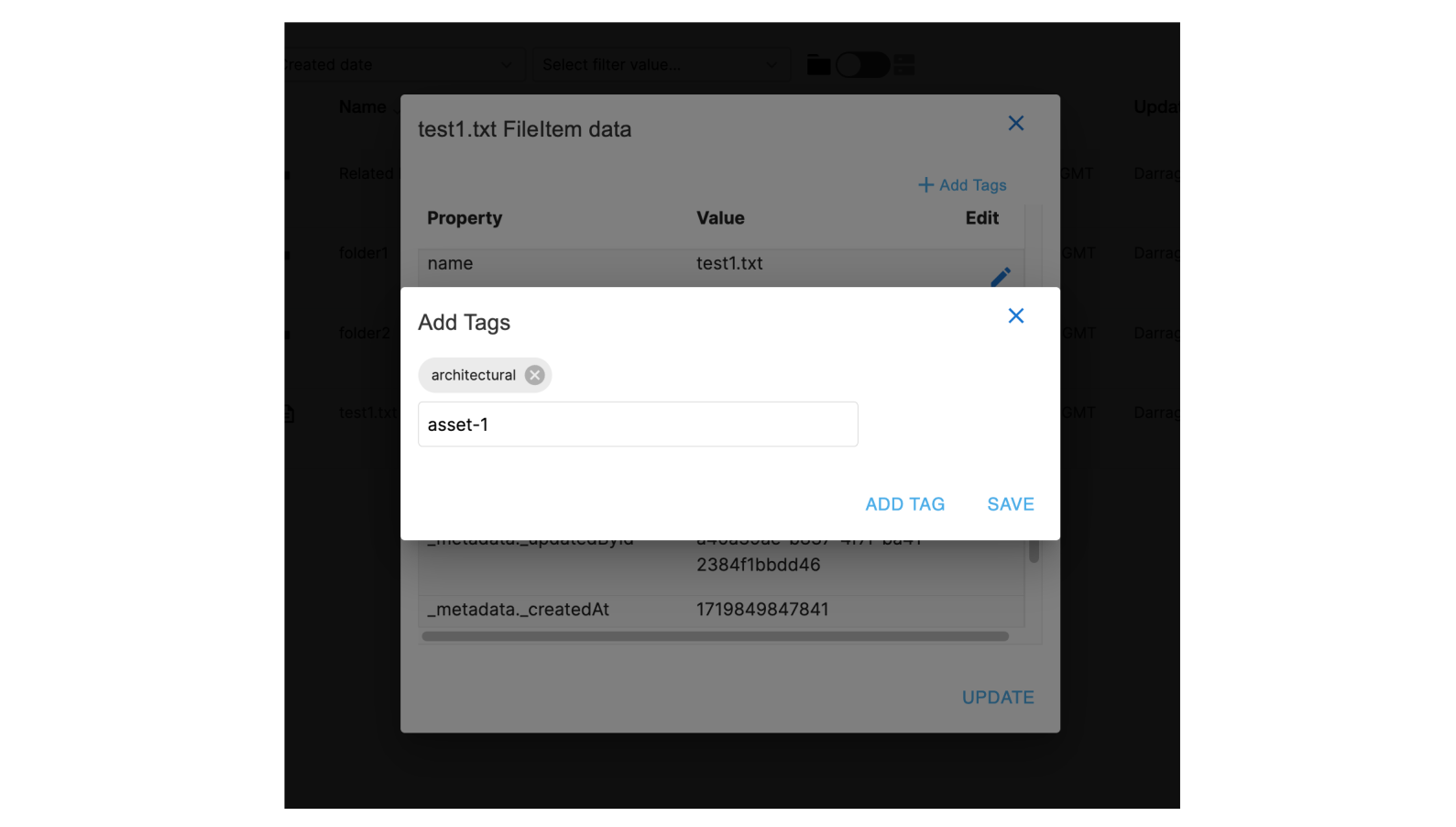

Tags modal#
You can add or remove custom tags from a folder or file's object properties. When you save your changes, the working object updates. To update this in the database, click UPDATE.

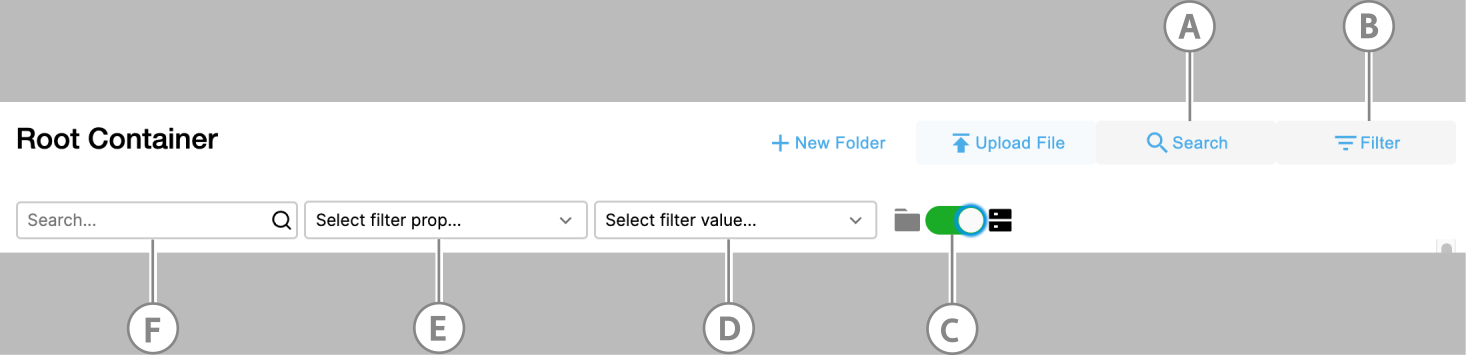

Search, filter, and sort a project's files and folders#
Any search, filter, or sort change event updates the query stored in context and triggers the query hook to run. Based on the folder-project toggle, this query operates on the current folder or the current project.
| Callout | Name | Description |
|---|---|---|
| A | Search toggle | Click the SEARCH button to display the search input. |
| B | Filter toggle | Click the FILTER button to display the filter drop-down options. |
| C | Folder-project toggle | Toggles the search, filter, and sort query to operate on the current folder only or the entire project folder structure. |
| D | Filter value drop-down | Loads the distinct values to filter by based on the selected property. Click a distint value to use the filter query on the folder or project. |
| E | Filter property drop-down | Select the property you want to filter by. |
| F | Search input | The search feature uses a regex filter to instantly filter the folders and files by name as the user types. |
