Cutting Planes

Cutting Planes pane#

Focused Planes#

Use the Focused Planes section of the Cutting Planes pane to build a cutting plane box of a given size around the selected element or asset. As well as providing more efficient loading times, you can use cutting planes to quickly make visible a selected element that is obscured from view by other elements in the model.

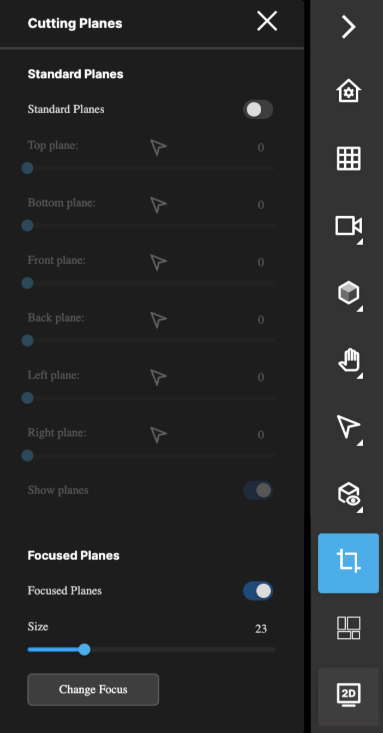

Figure: Cuttings Planes pane

UI elementDescription
SizeSets the size of the cutting plane box around the selected element or asset
Change FocusChanges the active selection subject in order to update the focused plane box

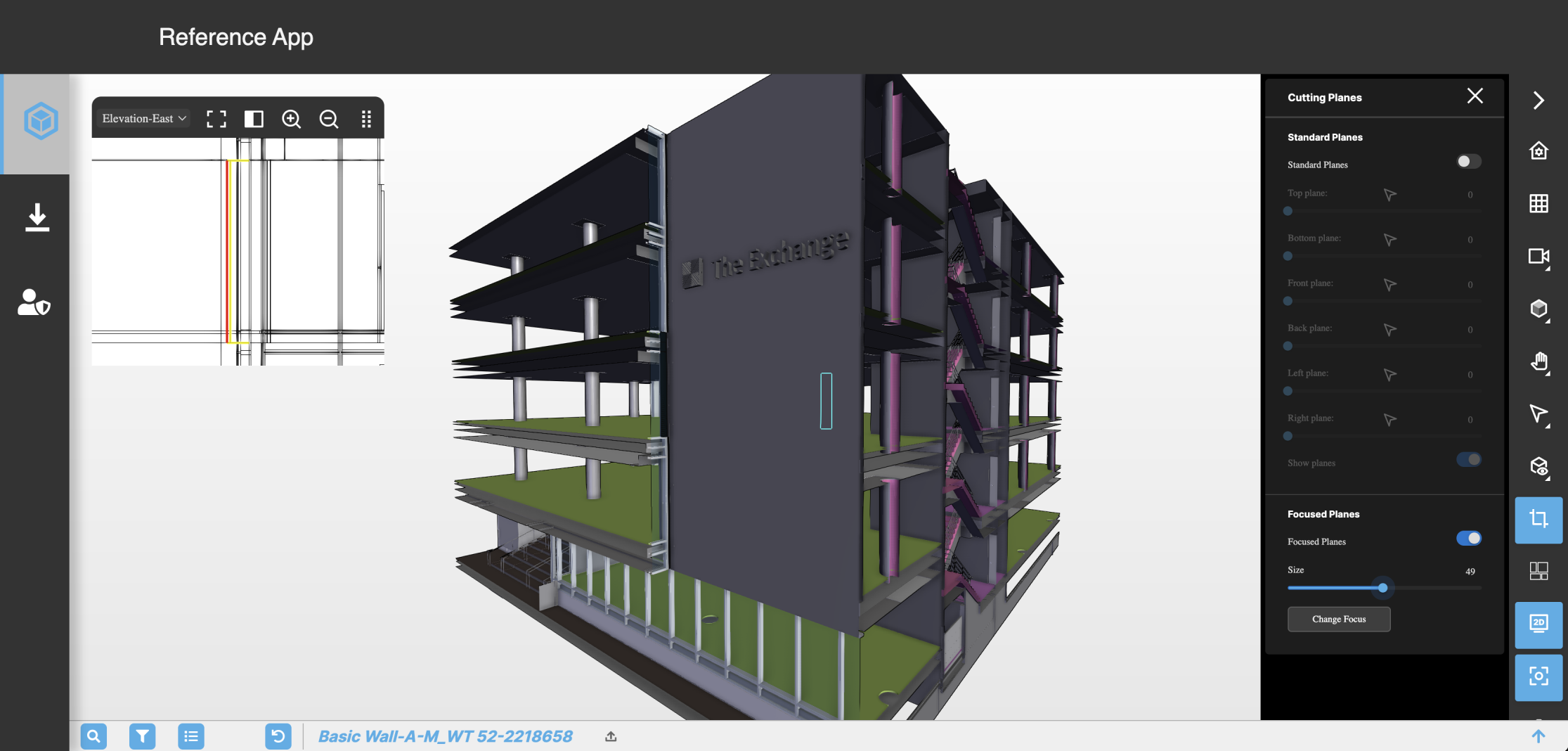

Figure: Example where model elements obstruct view of selected element

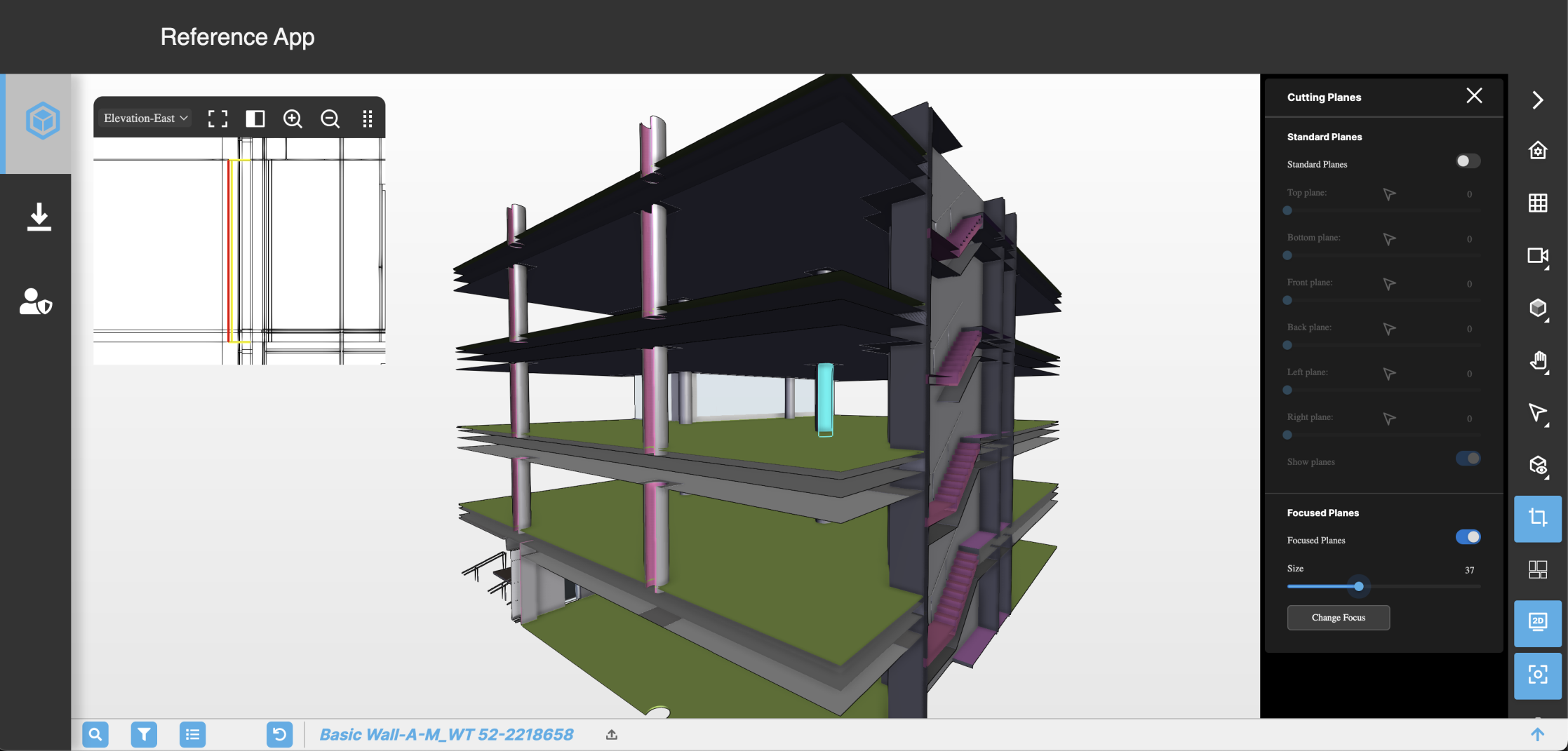

Figure: Example of focused planes revealing selected element
