OAUTH2 Authorization Code grant with PKCE

To secure JavaScript single page browser applications with refresh token functionality, use OAUTH2 Authorization Code grant with PKCE (Proof Key for Code Exchange).

Prerequisites#

  • Platform Application: The platform application acts as an OAUTH2 client. Register the redirect URI when you create your app. In the authentication process, specify the registered redirect URI, appId, code challenge, and code challenge method. Follow the tutorial to create your app on the platform.
  • An understanding of the following concepts:
    • Oauth2 Authorization Code
    • PKCE

Authorization and authentication workflow#

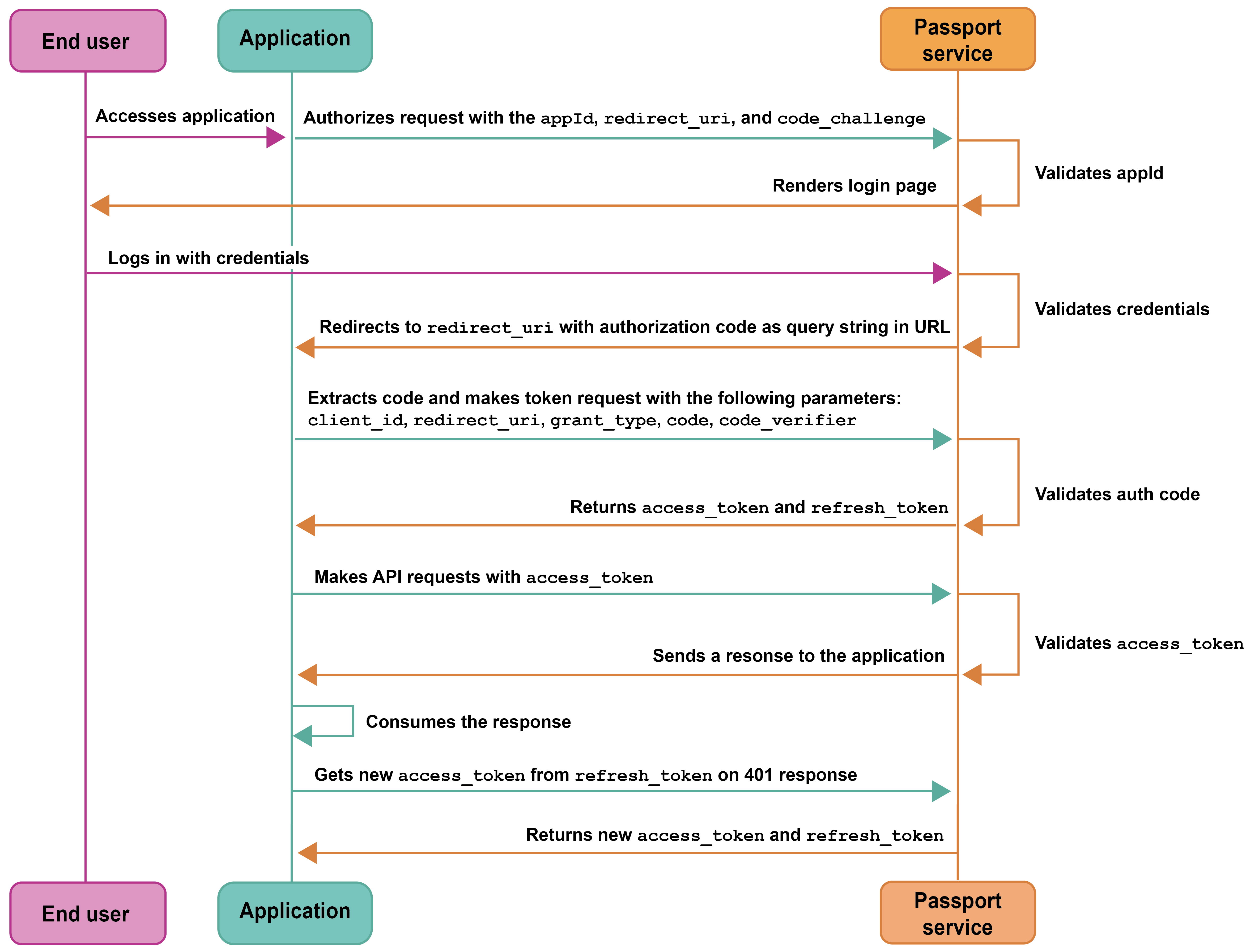

For an overview of the OAUTH2 Authorization Code grant with PKCE process for a user, application, and the passport service, see the following workflow diagram:

Figure: Auth flow diagram image

Setting up the authentication process#

  1. To direct the user to the authorization web flow, make a HTTP authorize request from a browser application with the following mandatory path and parameters:

    • Endpoint:
    • Parameters:
      • response_type: Tells the OAuth server to use the authorization_code grant type, for example code.
      • redirect_uri: The URL you want to redirect the user to after a successful login, such as . Replace the value here with the appropriate URL for your web app. The URL must be one of the values you specified for the _redirectUris parameter in your registered platform application.
      • client_id: Enter your app’s ID, for example 548a0869-0d46-4dd2-afbb-7ba83a000162.
      • code_challenge: The encrypted value (sha-256 and Base 64) for a random string of 16 to 64 characters to verify the token API request, for example YTU2YjIzOTYzMzcxMWIxZjg1ODUwM2E0Y2JkODJiMjBiYTc5ODc0ZjkzMWQwMjFlY2U5OGQxMjEzYzc2MDY3Zg.
      • code_challenge_method: Declares the encryption algorithm that generates the code challenge. Always use the value s256.
      • scope: Use read and write as the scope for example read write.

    This is the complete example request:

    `https://general-dev.company.com/passportsvc/api/v1/oauth/authorize?client_id=548a0869-0d46-4dd2-afbb-7ba83a000162&scope=read write&response_type=code&redirect_uri=https://general-dev.company.com/ipa-dev&code_challenge=YTU2YjIzOTYzMzcxMWIxZjg1ODUwM2E0Y2JkODJiMjBiYTc5ODc0ZjkzMWQwMjFlY2U5OGQxMjEzYzc2MDY3Zg&code_challenge_method=S256`

    Step result: The request takes the user to the Sign In page. When the user enters their credentials successfully, the user is redirected to the callback URL you pass as the redirect_uri parameter. The authorization code is included as a fragment of the URL.


  2. Extract the authorization code from the URL. For more information, see the code parameter in the following example endpoint URL:

  3. To exchange the authorization code for an access token, use the following POST request endpoint and parameters:

    • Request: POST
    • Endpoint:
    • Parameters:
      • client_id: 548a0869-0d46-4dd2-afbb-7ba83a000162
      • redirect_uri:
      • grant_type: authorization_code
      • code: CIJ6Vi
      • code_verifier: 14b96d8037dde437c9ab53c7eee399aff52eaff9b872afa7eb86116d7dab5602030671c943d578699f0fd33e1e0eeee06fe9f7cde6a5482157adabeccc267ea1
    • Response codes:
      • 200: Success
      • 403: Forbidden

    For more information, see the following request example:

    curl -v 'https://api.company.com/passportsvc/api/v1/oauth/token' \  -X 'POST' \  -H 'Content-Type: application/x-www-form-urlencoded' \  -d 'grant_type=authorization_code' \  -d 'code=IuUW1b' \  -d 'redirect_uri=https://apps.company.com/digitaltwin' \  -d 'client_id=6f42efd3-0d2e-45c2-b829-7614dd8343c4' \  -d 'code_verifier=4cc9b165-1230-4607-873b-3a78afcf60c5'

    Step result: The POST request returns the following response:

    {  "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJlM2M3YTlmNy0zY2M3LTRiMjUtOTYxNy05ODg1OTRjMzNmNjAiLCJzY29wZSI6WyJyZWFkIiwid3JpdGUiXSwiZXhwIjoxNjY3NjAwMTM1LCJhcHBfaWQiOiI1NDhhMDg2OS0wZDQ2LTRkZDItYWZiYi03YmE4M2EwMDAxNjIiLCJhdXRob3JpdGllcyI6WyJST0xFX1VTRVIiXSwianRpIjoiNmYzYWZjYTQtYmI1Ni00OGQ5LWEwY2EtNmYzMTliMmY3ZDFkIiwiY2xpZW50X2lkIjoiNTQ4YTA4NjktMGQ0Ni00ZGQyLWFmYmItN2JhODNhMDAwMTYyIn0.YbpNiswURRteTNCYe7cLcYDuoAl91BOb-GmhTH7VGyFz2RJtrSQEhs5AHnFg5l0KlYltB1mOU_pKgDev02YX8KLh6vDwK-MCfPcDfwKSpdaxhEM5C7DoorJCzMZWwy2tOSfJCMfZJchhY3KfvgZ_H1WmdUyIh3qXVU04X5hYe06yBvPVR50MByWrp_yM66kCO_GCsHpQ6y5FlVzwwDszIps1affX0Vclz4qjY3zZP1gtpb5n98WmRWJFSj6sI_FSM_jbzGa0YefZNE_G-wGi0Yq6deOOyMHAQHxRfWTznykOTEN7DOq5Jof8sZPtL0cjVPJP28PbnaL9nt7PFFaiKg",  "token_type": "bearer",              "refresh_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJlM2M3YTlmNy0zY2M3LTRiMjUtOTYxNy05ODg1OTRjMzNmNjAiLCJzY29wZSI6WyJyZWFkIiwid3JpdGUiXSwiYXRpIjoiNmYzYWZjYTQtYmI1Ni00OGQ5LWEwY2EtNmYzMTliMmY3ZDFkIiwiZXhwIjoxNjcwMTQ4OTM1LCJhcHBfaWQiOiI1NDhhMDg2OS0wZDQ2LTRkZDItYWZiYi03YmE4M2EwMDAxNjIiLCJhdXRob3JpdGllcyI6WyJST0xFX1VTRVIiXSwianRpIjoiMzFkYmU2MmYtYjMwMC00ODY4LWE3ZDctYThhNDZkMWVlYmQ2IiwiY2xpZW50X2lkIjoiNTQ4YTA4NjktMGQ0Ni00ZGQyLWFmYmItN2JhODNhMDAwMTYyIn0.bQUz9tjdz4Pf45Btii06ZqJiG636XlmTfnbdfDNqBB_Ud9KO3Vx9ISDlRij3RMkz15g1CNK4WmTFfEIByR4nLjzgcAqhLPMNsdcVkJTTnun8CZpm1xAKFFDT5ztcEilUhUXELz1OhB13nfIzPf3BH28q5jJms9CDtLFuVNiu8rfNkaQyijA1QLZmVc-_Q7XMo2O2Z2VnBZpK1QFhBixwMsLvlv9yFvyAWVl8vU6WESC_oyR3xKFtoK5VT6-kA0nEL6G_I0bpCBKZ5DA4D85CfBl94sUnSsGv7VDoFoIEie1u5cbi6JzJY0EgzfGYsya26viaKI28KL_CTn4hJY-oCw",  "expires_in": 43199,  "scope": "read write",  "user_name": "e3c7a9f7-3cc7-4b25-9617-988594c33f60",  "app_id": "548a0869-0d46-4dd2-afbb-7ba83a000162",  "jti": "6f3afca4-bb56-48d9-a0ca-6f319b2f7d1d"}

  4. To get a new set of access tokens from a refresh token after the current access token expires, make a GET request with the following endpoint and parameters:

    • Request: GET
    • Endpoint:
    • Parameters:
      • client_id: 548a0869-0d46-4dd2-afbb-7ba83a000162
      • redirect_uri:
      • grant_type: refresh_code
    • Response codes:
      • 200: Success
      • 403: Forbidden

    For more information, see the following request example:

    curl --location --request POST 'https://api.company.com/passportsvc/api/v1/oauth/token?grant_type=refresh_token&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJmZGJjOGQ3MC0wMTllLTRjYmQtYWQ2Mi02MGE3YTY2ODMwOTciLCJzY29wZSI6WyJyZWFkIiwid3JpdGUiXSwiYXRpIjoiZmIyZDljYmUtYTBiMi00ZDkyLWFiMTktYzY2N2UwNzQxZGMzIiwiZXhwIjoxNjQwMjUyMTQ1LCJhcHBfaWQiOiI2ZjQyZWZkMy0wZDJlLTQ1YzItYjgyOS03NjE0ZGQ4MzQzYzQiLCJhdXRob3JpdGllcyI6WyJST0xFX1VTRVIiXSwianRpIjoiYmRjZDI4YjktNzdhNy00OWFlLWE5OGQtMzljMmQwYjdjY2RjIiwiY2xpZW50X2lkIjoiNmY0MmVmZDMtMGQyZS00NWMyLWI4MjktNzYxNGRkODM0M2M0In0.Dk6rWz9GH6qql9lREAWpavZlUOz9XjLeGeAxAyjuQF3-zjtqofih8gWhVrMAMIzN5yIV29HXQl5mMCpEhjptJ04iZuz7ZeP8XzzLzpDzxuKWuPb0ajLpfh4xErEaWzlhh4XvN_siZwJ7hbefD-BpzEOjdBqfyWWWsQfjr9xi7KBqoXHn9NKy79eZzMhybahbtgVxSYTZSnhDP0jc04Z0GAOJKpxxQM-YanW2Se3R4fxvWpnCeZ5KbN2Ur0W-m-b3rf6QtDKlPtxW8VP9-sPVMBUZEiIaHSI7DEffr_4OxrL5B-2wKzuhYoqCrEoLsRcw3lkCJcgrR6Z7Tsct9Me-Bw&client_id=6f42efd3-0d2e-45c2-b829-7614dd8343c4' \

    Step result: The GET request returns the following response:

    {  "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJlM2M3YTlmNy0zY2M3LTRiMjUtOTYxNy05ODg1OTRjMzNmNjAiLCJzY29wZSI6WyJyZWFkIiwid3JpdGUiXSwiZXhwIjoxNjY3NjAwMTM1LCJhcHBfaWQiOiI1NDhhMDg2OS0wZDQ2LTRkZDItYWZiYi03YmE4M2EwMDAxNjIiLCJhdXRob3JpdGllcyI6WyJST0xFX1VTRVIiXSwianRpIjoiNmYzYWZjYTQtYmI1Ni00OGQ5LWEwY2EtNmYzMTliMmY3ZDFkIiwiY2xpZW50X2lkIjoiNTQ4YTA4NjktMGQ0Ni00ZGQyLWFmYmItN2JhODNhMDAwMTYyIn0.YbpNiswURRteTNCYe7cLcYDuoAl91BOb-GmhTH7VGyFz2RJtrSQEhs5AHnFg5l0KlYltB1mOU_pKgDev02YX8KLh6vDwK-MCfPcDfwKSpdaxhEM5C7DoorJCzMZWwy2tOSfJCMfZJchhY3KfvgZ_H1WmdUyIh3qXVU04X5hYe06yBvPVR50MByWrp_yM66kCO_GCsHpQ6y5FlVzwwDszIps1affX0Vclz4qjY3zZP1gtpb5n98WmRWJFSj6sI_FSM_jbzGa0YefZNE_G-wGi0Yq6deOOyMHAQHxRfWTznykOTEN7DOq5Jof8sZPtL0cjVPJP28PbnaL9nt7PFFaiKg",  "token_type": "bearer",              "refresh_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJlM2M3YTlmNy0zY2M3LTRiMjUtOTYxNy05ODg1OTRjMzNmNjAiLCJzY29wZSI6WyJyZWFkIiwid3JpdGUiXSwiYXRpIjoiNmYzYWZjYTQtYmI1Ni00OGQ5LWEwY2EtNmYzMTliMmY3ZDFkIiwiZXhwIjoxNjcwMTQ4OTM1LCJhcHBfaWQiOiI1NDhhMDg2OS0wZDQ2LTRkZDItYWZiYi03YmE4M2EwMDAxNjIiLCJhdXRob3JpdGllcyI6WyJST0xFX1VTRVIiXSwianRpIjoiMzFkYmU2MmYtYjMwMC00ODY4LWE3ZDctYThhNDZkMWVlYmQ2IiwiY2xpZW50X2lkIjoiNTQ4YTA4NjktMGQ0Ni00ZGQyLWFmYmItN2JhODNhMDAwMTYyIn0.bQUz9tjdz4Pf45Btii06ZqJiG636XlmTfnbdfDNqBB_Ud9KO3Vx9ISDlRij3RMkz15g1CNK4WmTFfEIByR4nLjzgcAqhLPMNsdcVkJTTnun8CZpm1xAKFFDT5ztcEilUhUXELz1OhB13nfIzPf3BH28q5jJms9CDtLFuVNiu8rfNkaQyijA1QLZmVc-_Q7XMo2O2Z2VnBZpK1QFhBixwMsLvlv9yFvyAWVl8vU6WESC_oyR3xKFtoK5VT6-kA0nEL6G_I0bpCBKZ5DA4D85CfBl94sUnSsGv7VDoFoIEie1u5cbi6JzJY0EgzfGYsya26viaKI28KL_CTn4hJY-oCw",  "expires_in": 43199,  "scope": "read write",  "user_name": "e3c7a9f7-3cc7-4b25-9617-988594c33f60",  "app_id": "548a0869-0d46-4dd2-afbb-7ba83a000162",  "jti": "6f3afca4-bb56-48d9-a0ca-6f319b2f7d1d"}
