Multi-model support

The Reference App supports the ability to upload and load more than one model.

Enable with project setup

When you create a new project, enable multi-model support with one of the following options:

A. For a user-interface project setup, enable the Multi-model support checkbox. This uploads two pre-set models:

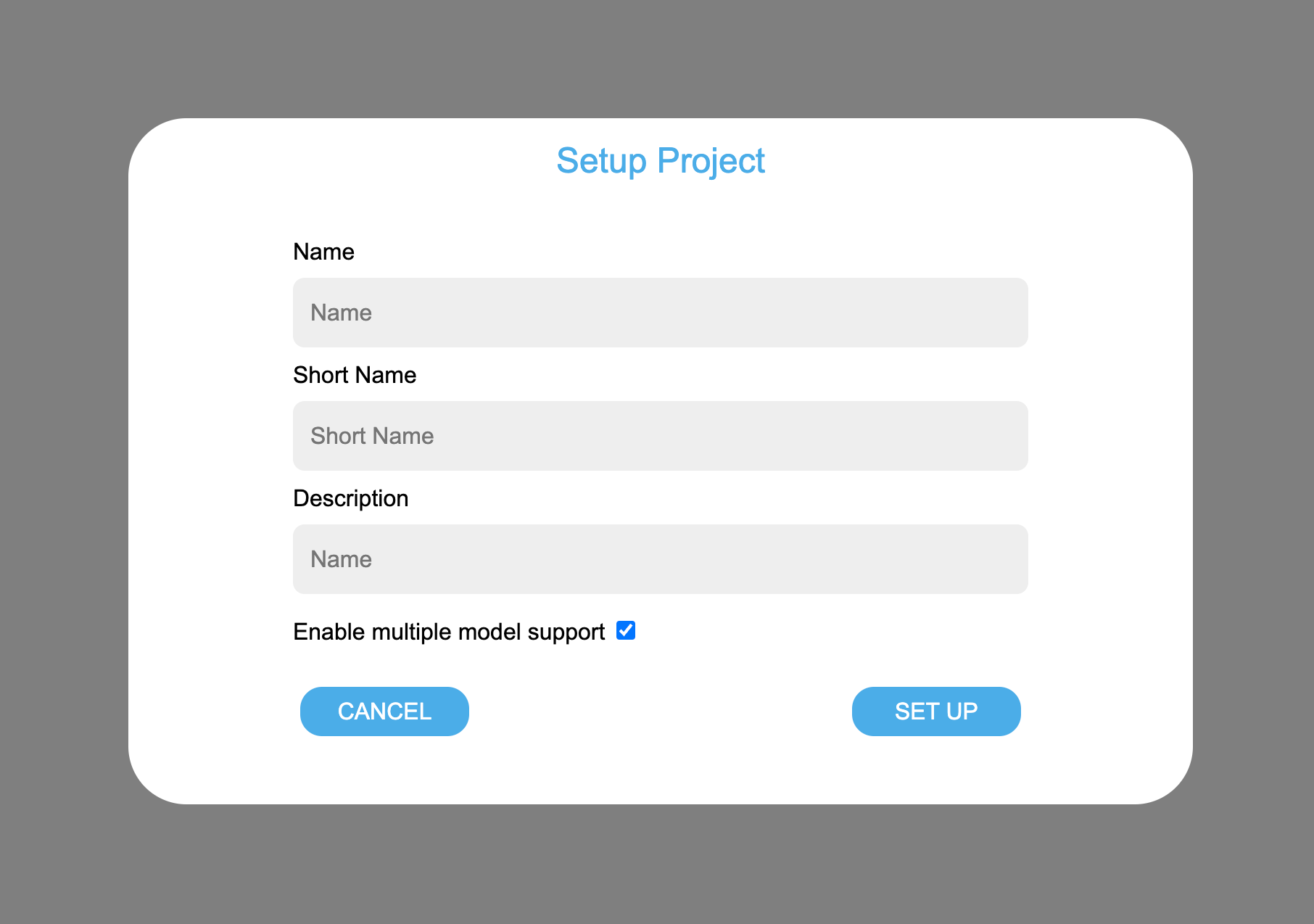

Figure: Enable multi-support checkbox

B. For a manual VS Code Extension project setup, when prompted to select a bimpk file, select up to 5 bimpk files from your local file system.

Changing models

Change models from the Models pane, either on the Model Elements page or the Model Navigator drawer.

From the models selector, select the model, then click CHANGE MODELS.

Figure: Models pane and selector in Model Elements page

Callout	Description
A	Model selector
B	CHANGE MODEL button

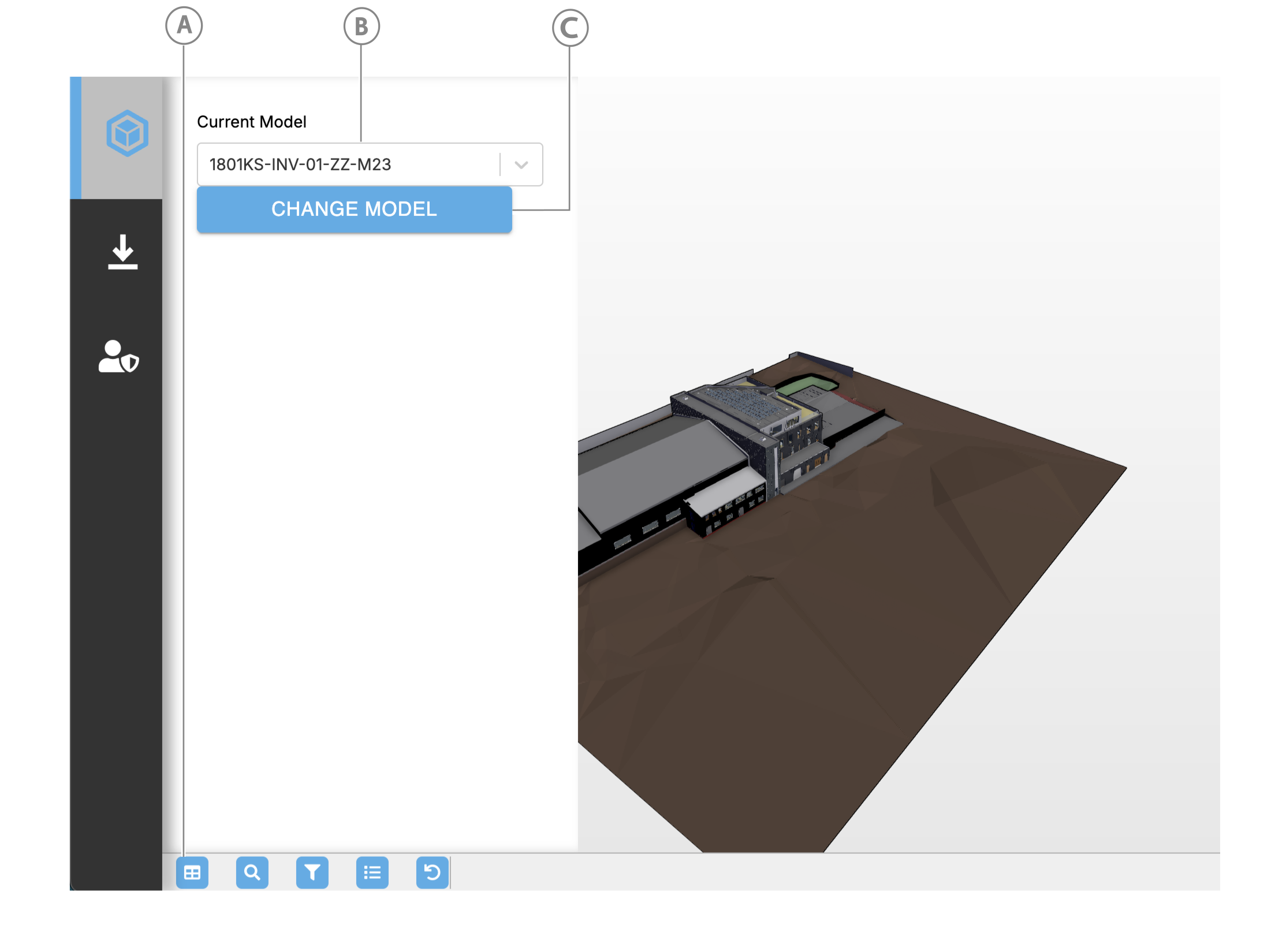

Figure: Models pane and selector in Model Navigator page

Callout	Description
A	Models pane button
B	Model selector
C	CHANGE MODEL button

Add more models from the Model Manager UI

If multi-model support is enabled, you can manage multiple models from the Model Manager on the Admin/Manage Models page.

As well as adding new models, you can complete the existing functionality for multiple models:

• Upload new bimpk version
• Import bimpk as model
• Remap
• Upload new type map
• Delete model

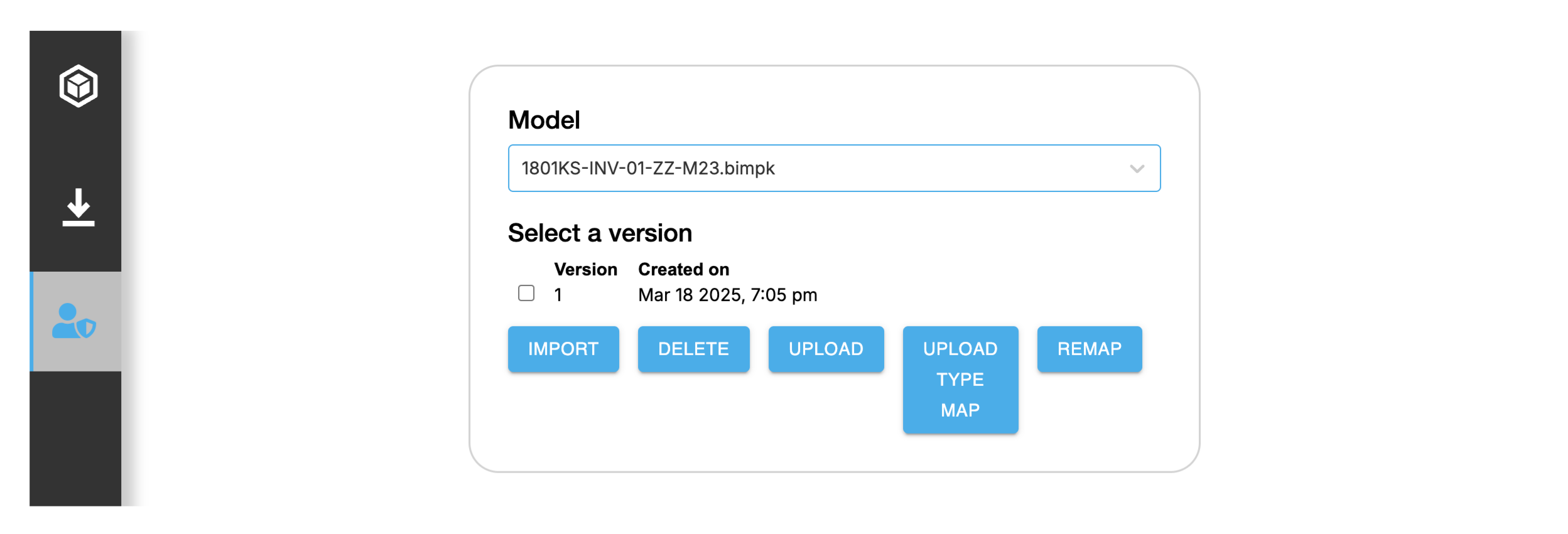

Figure: Models manager

Adding a new model

1. From the sidebar, hover over the Admin icon, then click Manage Model.
2. Click UPLOAD, then select a new .bimpk file. Wait for the bimpk file to upload.
3. Ensure the new bimpk is selected, then select the latest version. Click IMPORT. Wait for the model to import successfully.
4. Click UPLOAD TYPE MAP.
5. When prompted, to load the model in the app, click LOAD.

Multi-model upload

Multiple bimpk import

With multi-model support, the uploadBimpk loops over each selected file and uploads it to the File Service:

  async function uploadBimpk() {    try {      for (let i = 0; i < bimpkMetadata.length; i++) {         try {          const uploadedFile = await uploadToFilesvc(            bimpkMetadata[i].bimpkFilePath,             ctx,             {              filename: bimpkMetadata[i].bimpkFile._name,            }          );        } catch (e) {          throw e;        }      }    } catch (e) {      throw e;    }  }

Multiple model import

To run concurrent model imports, the importModels function first creates run params for each orchestrator:

async function importModels(params, libraries, ctx) {  ...  async function runOrchestrators(orchestrator, bimpkFiles) {    const task = _.find(orchestrator.orchsteps, { _sequenceno: 1 });    const seqTypeId = task._compid;
    const runParams = bimpkFiles.map((file) => ({      orchestratorId: orchestrator.id,      _actualparams: [{        sequence_type_id: seqTypeId,        params: {          _fileId: file.file_id,          _fileVersionId: file.fileVersion_id        }      }]    }));  }}

Next, the function runs each orchestrator with IafScriptEngine.runDatasource and returns promises for polled results:

async function importModels(params, libraries, ctx) {  ...  async function runOrchestrators(orchestrator, bimpkFiles) {  ...  const results = await Promise.all(    runParams.map(async (param, index) => {      try {        const orchResult = await IafScriptEngine.runDatasource(param, ctx);        return await pollOrchestrator(orchResult, index);      } catch (error) {        throw error;      }    })  );
    return results;  }}

Multiple model mapping

mapRevitTypeCollections gets the imported models:

async function mapRevitTypeCollections(params, libraries, ctx) {  ...  const getModels = async () => {    let models = await IafScriptEngine.getCompositeCollections(      {        query: {          _userType: "bim_model_version",          _namespaces: {            $in: ctx._namespaces,          },          _itemClass: "NamedCompositeItem",        },      },      ctx,      { getLatestVersion: true }    );    models = models._list;    console.log(      "Started createIndex.",      "Create index ==== getCompositeCollection.",      models    );    return models;  }  ...}

Then it creates run params for each orchestrator:

async function mapRevitTypeCollections(params, libraries, ctx) {  ...  const bimpkModels = await getModels();  let orchestrators = await IafScriptEngine.getDatasources(    { _namespaces: ctx._namespaces },    ctx  );
  orchestrators = _.filter(orchestrators, (orch) =>  orch._userType == "map_revit_type");  let orchestrator = orchestrators[0];
  const task = _.find(orchestrator.orchsteps, { _sequenceno: 1 });  const seqTypeId = task._compid;  const runParams = bimpkModels.map((bm) => ({    orchestratorId: orchestrator.id,    _actualparams: [      {        sequence_type_id: seqTypeId,        params: {          bimModel: bm        },      },    ],  }));
  const orchResults = await runOrchestrators(runParams);  ...}

Next, the function runs each orchestrator with IafScriptEngine.runDatasource and returns promises for polled results:

async function mapRevitTypeCollections(params, libraries, ctx) {  ...    const results = await Promise.all(      runParams.map(async (param, index) => {        try {          const orchResult = await IafScriptEngine.runDatasource(param, ctx);          return await pollOrchestrator(orchResult, index);        } catch (error) {          throw error;        }      })    );  ...}
