Mapbox temp tokens for IafViewer GIS

In the IafViewer, you can view your building model on a GIS map, using Mapbox.

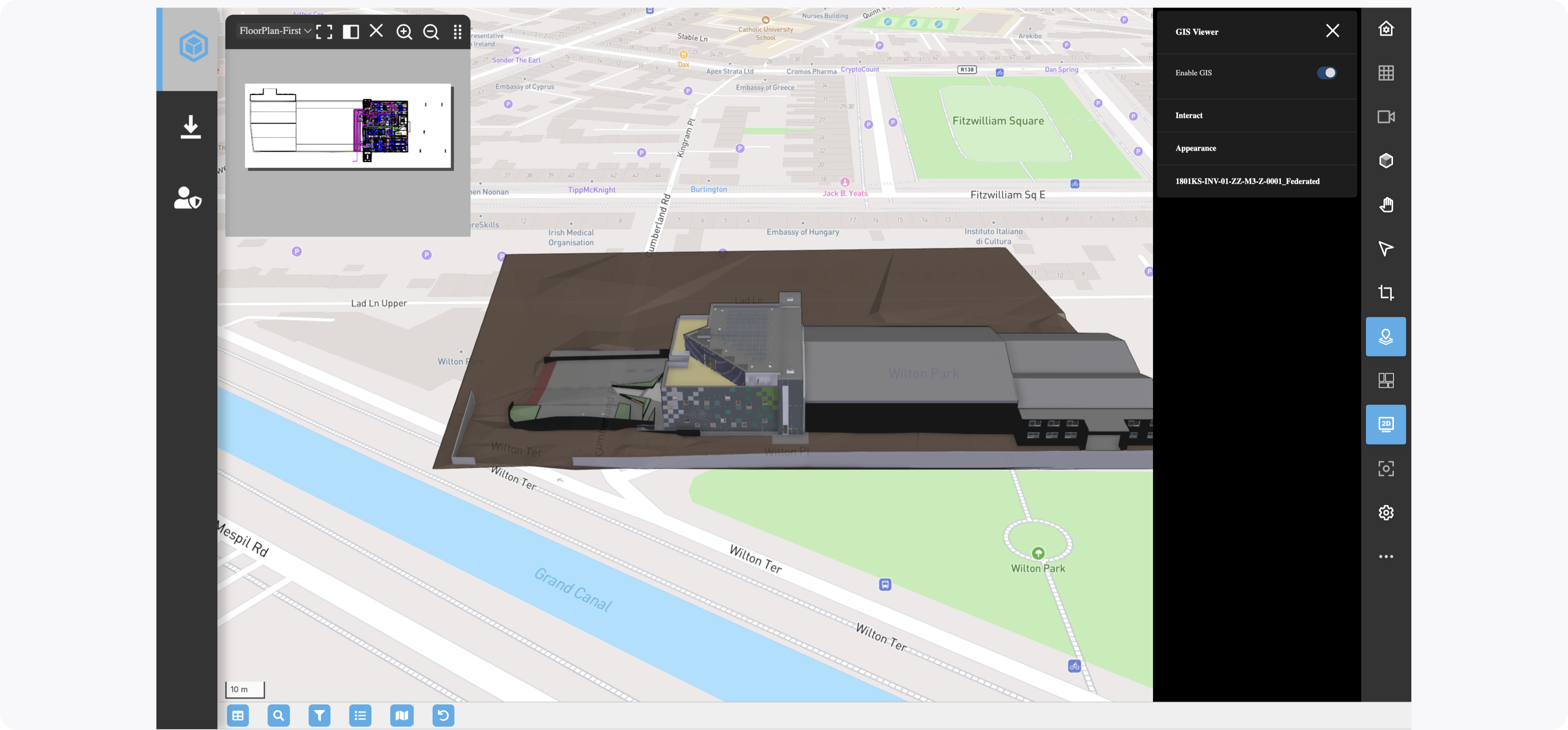

Figure: Enable GIS

Secure Mapbox secret storage and temp token request architecture#

The IafViewer requires a temporary Mapbox token to load maps. Mapbox does not allow client-side requests for temp tokens for security purposes. As a result, it is best practice to complete the following:

  • Mapbox secret token secure storage:

    • The admin user can aquire a Mapbox license and store the Mapbox secret token as an encrypted parameter in the Item Service

    • The Reference App UI provides a form to intake this data

    • For more information, see Mapbox secret token secure storage

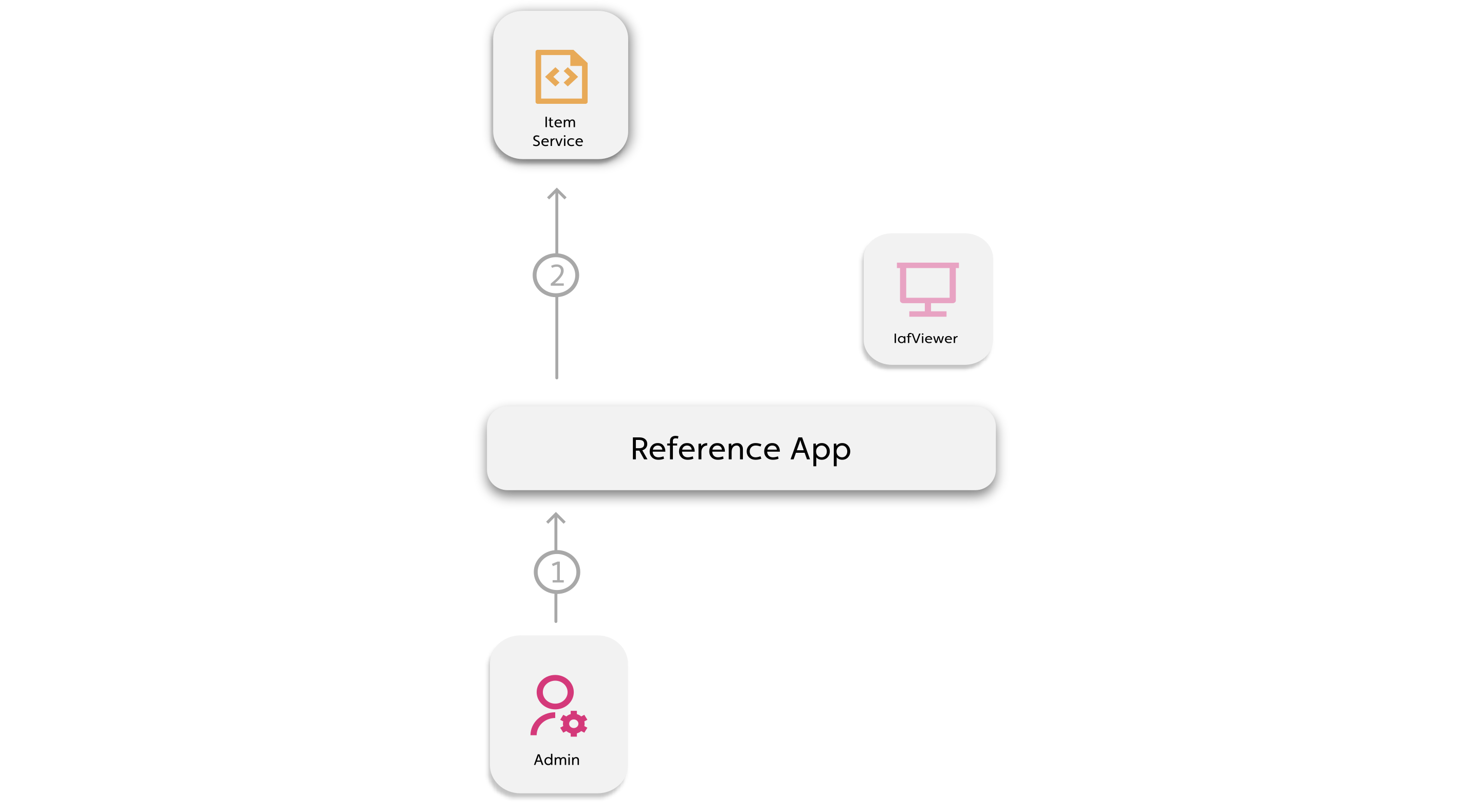

      Figure: Mapbox temp token config setup architecture

      CalloutDescription
      1Admin user enters Mapbox secret and temp token config information
      2Stores token config as RelatedItem to a Mapbox token config NamedUserCollection in Item Service with the secret as an encrypted field

  • Mapbox temp token secure request:

    • When non-admin users enable GIS, the secret token is used to generate a temporary token from Mapbox so that the map loads

    • To securely retrieve the secret token make an API request to Mapbox for a temp token, use an Orchestrator and its Script, which executes in the back-end Script Execution Service

    • For more information, see Secure Mapbox temp token storage

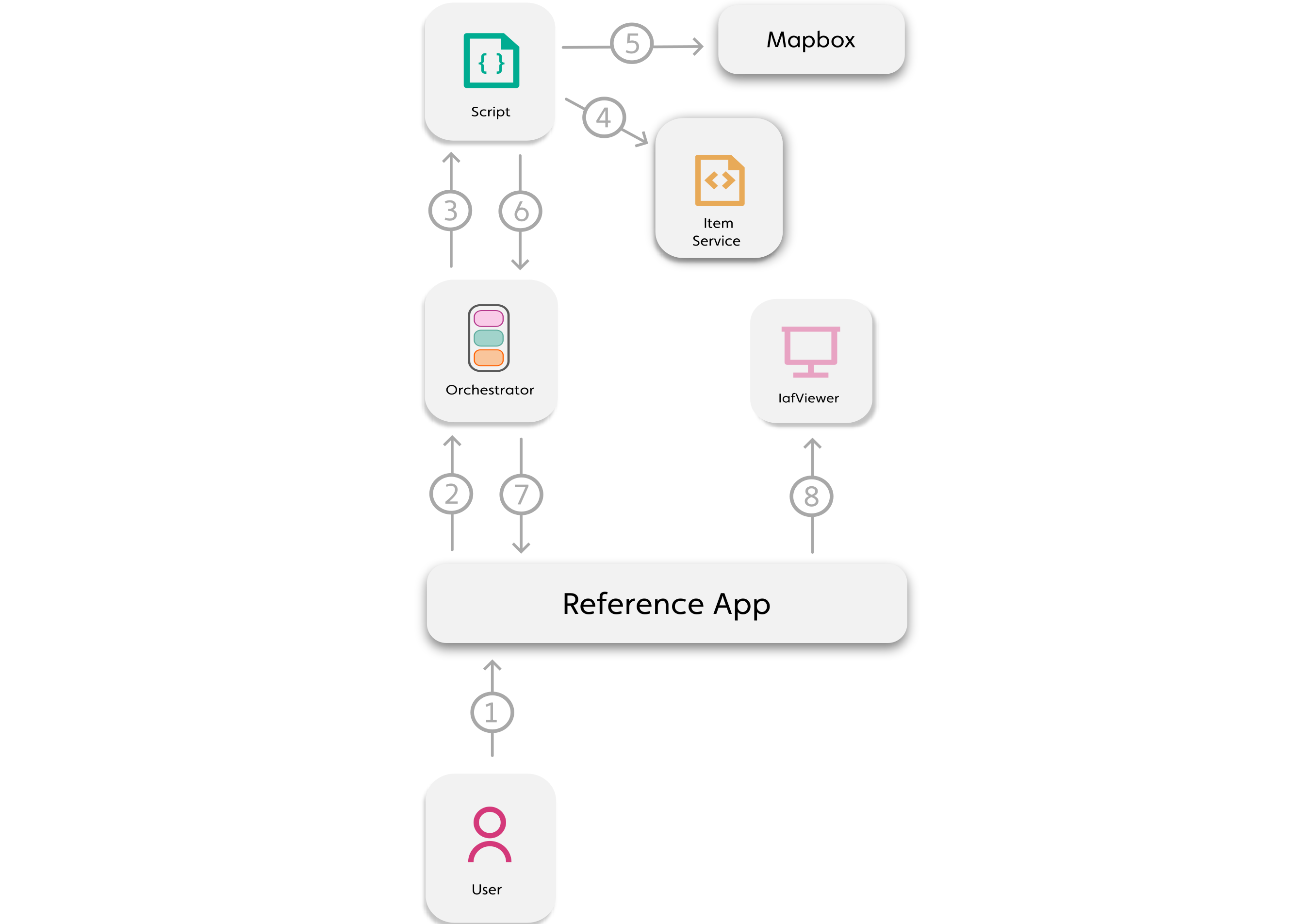

      Figure: Mapbox temp token config setup architecture

      CalloutDescription
      1Non-admin user requests to view 3D model with Mapbox
      2Temp Mapbox token Orchestrator runs with permission profile, which permits the script read the mapbox secret from Item Service.
      3The Orchestrator runs the required script
      4The script reads the Mapbox secret from Item Service
      5The script uses the Mapbox secret to generate a temp token via the Mapbox API
      6Script returns temp token
      7Orchestrator returns temp token
      8Temp token passed to IafViewer and stored in session storage

New and updated files in Reference App for feature:#

  • New:
    • MapboxSecretSubmit.jsx: Form to intake token config data
    • iaf_map_box.js: Local API file with Mapbox related functions
    • iaf_mapbox.js: Script uploaded to Item Service containing Mapbox functions for Orchestrator
  • Updated:
    • NavigatorView.jsx: Added function to get temp token and store in state
    • createOtherColls.js: Adds permission profile for Mapbox orchestrator in project setup

Mapbox secret token secure storage#

To securely store a Mapbox secret token from your app, complete the following:

  • Create a NamedUserCollection for Mapbox temp token configs
  • Intake the temporary token config data via a form
  • Create a RelatedItem consisting of the temporary token config data, making sure to store the secret token as an encrypted field

For more information, see the following walkthrough of the setup in the Reference App:

Walkthrough: Securely storing a Mapbox secret token#

  1. Create a Mapbox account and create a new token, ensuring it has at least the following scopes: TOKENS:WRITE, STYLES:READ, DATASETS:READ, MAP:READ, FONTS:READ.

    Note: You cannot use the default Mapbox token, you must create a new one.

  2. The form in the MapboxSecretSubmit.jsx component takes the following required data:

  • Mapbox account username

  • Token expiry time in seconds

  • The scopes you want to apply to the temp token from the secret token scopes, in a valid JSON array: ["tokens:write", "styles:read", "datasets:read", "map:read", "fonts:read"]

  • Secret token

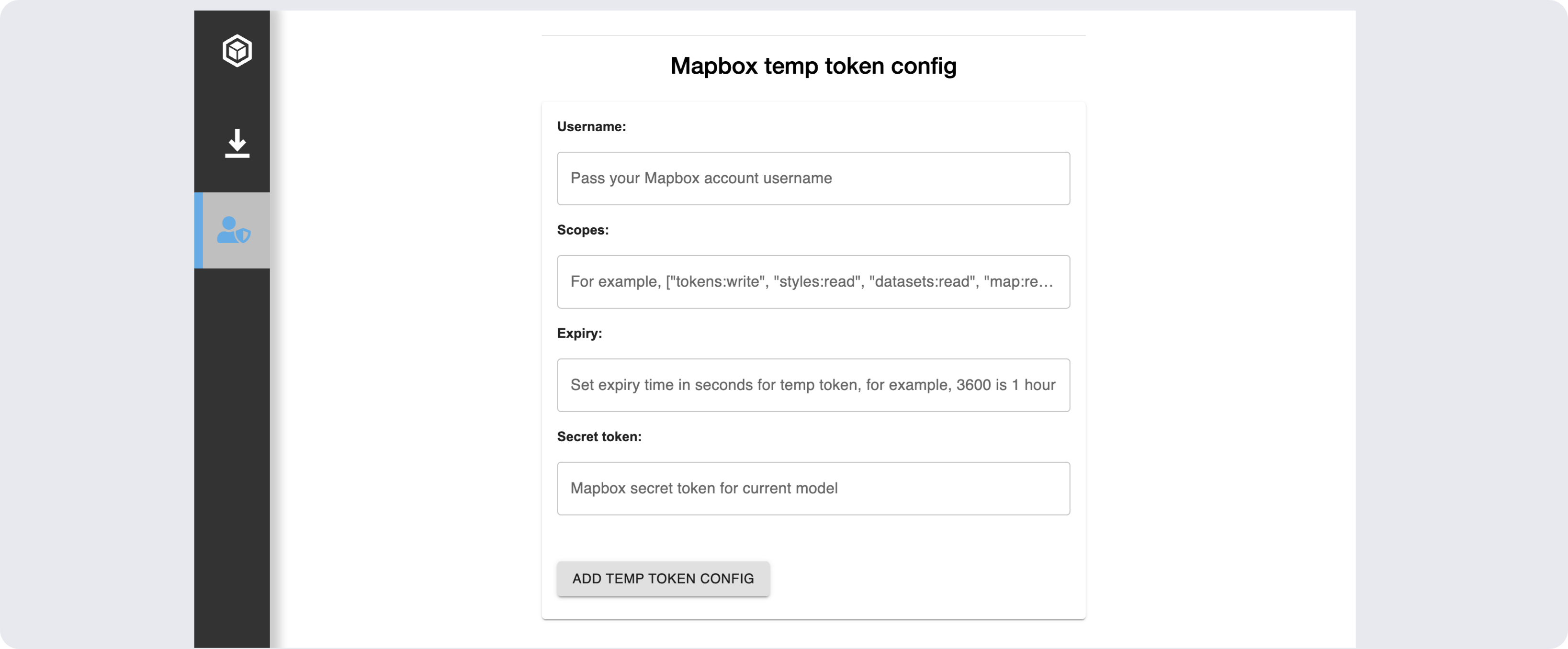

    Figure: Temp token config data form

  1. On form submit, addMapConfig() creates the Mapbox temp token configuration collection, then adds the form token config data as a RelatedItem:
      const addMapConfig = async () => {    setStatus('Adding Mapbox temp token config')    const mapboxColl = await mapBox.checkForMapconfigColl(PlatformApi, ctx);    await mapBox.addSecretToMapboxColl(      username,      JSON.parse(scopes),      expiry,      secret,       mapboxColl,      appContext.selectedItems.selectedProject._id,       PlatformApi,      ctx    );    ...  }
    The checkForMapconfigColl() function in iaf_map_box.js checks if a mapbox temp token configuration collection already exists:
      async checkForMapconfigColl(PlatformApi, ctx) {    const { IafItemSvc } = PlatformApi;    let mapboxCollRes = await IafItemSvc.getNamedUserItems(      { "query": { _userType: 'mapbox_config_coll' } },      ctx,      {}    );    ...  },
    If not, it creates the NamedUserCollection with the _encryptionEnabled parameter to later encrypt the secret token field in the Mapbox token config RelatedItem:
      async createMapboxConfigColl(PlatformApi, ctx) {    const { IafItemSvc } = PlatformApi;    const mapBoxCollDef = {      _name: `MapBox Configs Collection`,      _shortName: "mapbox_config_coll",      _description: "Named User Collection to store sensor and points data",      _namespaces: ctx._namespaces,      _userType: "mapbox_config_coll",      _encryptionEnabled: true    };    let mapBoxConfigColl = await IafItemSvc.createNamedUserItems(      [mapBoxCollDef],      'NamedUserCollection',      ctx    );  },
    The addSecretToMapboxColl() function defines the Mapbox token config RelatedItem based in the form input. For the secret field, prefix . to the field name to encrypt its value:
      async addSecretToMapboxColl(username, scopes, expiry, secret, coll, projId, PlatformApi, ctx) {    const { IafItemSvc } = PlatformApi;    const mapboxRelItems = [      {        '_projId': projId,        '_username': username,         '_scopes': scopes,         '_expiry': expiry,        '._secret': secret // '.' prefix for Item Service encryption      }    ];    ...  }
    Then it uses IafItemSvc.createRelatedItems to add the item to the collection as a RelatedItem:
        ...    const mapboxItems = await IafItemSvc.createRelatedItems(      coll._id,      mapboxRelItems,      ctx    );    return mapboxItems;

Secure Mapbox temp token request#

To securely request a Mapbox temp token from your app, complete the following:

  • Create a permission profile
  • Create script that gets the encrypted secret token and sends a request to mapbox for a temp token
  • Create an orchestrator with reference to the permission profile and script
  • In your component that contains the IafViewer component, add a function that handles the temp token in state

For more information, see the following walkthrough of the setup in the Reference App:

Walkthrough: Securely requesting a Mapbox temp token#

  1. When NavigatorView.jsx mounts, the checkMapboxToken() function checks if there is a fresh Mapbox temp token in session storage and if not, it requests one, then updates the state:

      async checkMapboxToken() {    const sessionToken = IafSession.getSessionStorage('mapboxToken');    const proj = this.props.selectedItems.selectedProject;    const ctx = { _namespaces: proj._namespaces }    const token = sessionToken && mapBox.checkTokenFreshness(sessionToken)      ? sessionToken      : await mapBox.getMapboxToken(        proj,        PlatformApi,         IafScriptEngine,         ctx      );    this.setState({ mapboxToken: token });  }

    If there is a token, checkTokenFreshness() decodes it and checks if it has expired:

      checkTokenFreshness(token) {  try {    const tokenBase64 = token.split('.')[1];    const decodedToken = JSON.parse(atob(tokenBase64));    const exp = decodedToken.exp;     const now = Math.floor(Date.now() / 1000);    if (exp < now) {      console.log("Token has expired. Requesting a new one...");      return false;    } else {      console.log("Mapbox token valid");      return true;    }  } catch (e) {    console.error('Error decoding token:', e);    return false;  }}

    If there is no token or the token is stale, a token request is required.

  2. The function getMapboxToken() first checks if the Mapbox orchestrator exists and if not, creates one, then runs it:

      async getMapboxToken(project, PlatformApi, IafScriptEngine, ctx) {  const orchCheck = await this.checkMapboxOrch(PlatformApi);  !orchCheck && await this.createMapboxOrch(PlatformApi, ctx);  const orchRes = await this.runMapboxOrch(    project._id,     PlatformApi,     IafScriptEngine,     ctx  );  return orchRes._result.token;    },

  3. The createMapboxOrch() function creates a permission profile if it doesn't already exist. The permission profile provides access to data that the logged in user doesn't have permissions for:

    async createMapboxOrch(PlatformApi, ctx) {  const { IafDataSource, IafProj } = PlatformApi;  const project = IafProj.getCurrent();  let permProfile;  let permCheck = await this.checkPermProfile(PlatformApi, ctx);  console.log('permCheck', permCheck)  if (permCheck) {    permProfile = permCheck;  } else {    permProfile = await this.createMapboxPermProfile(project, PlatformApi);  }  console.log('permProfile', permProfile)  ...}

    createMapboxPermProfile() creates a permission profile to access the Mapbox temp token NamedUserCollection:

    async createMapboxPermProfile(project, coll, PlatformApi) {  const { IafPassSvc } = PlatformApi;  const workspaceId = project._id;  const irnValue = "passportsvc:workspace:" + workspaceId;  console.log('running createMapboxPermProfile');  const ctx = { _namespaces: project._namespaces };  const permProfile = await IafPassSvc.createPermissionProfiles(    [      {        _name: "Mapbox token orchestrator perms",        _userType: "mapbox_token_perm",        _namespaces: [project._namespaces[0]],        _permissions: [          {            _actions: ["READ", "SHARE"],            _namespace: project._namespaces[0],            _resourceDesc: {              _irn: irnValue,            },          },          {            _actions: ["READ"],            _namespace: project._namespaces[0],            _resourceDesc: {              _irn: `itemsvc:nameduseritem:${coll._id}`, // platform resource indicator for collection            },          }        ]      }    ],    ctx  );  console.log("permProfile", permProfile)  return permProfile;},

    When creating the orchestrator, the permission profile's id is passed via the _permissionprofileid field:

      async createMapboxOrch(PlatformApi, ctx) {    ...    const mapboxTokenDsResult = await IafDataSource.createOrchestrator(      {        _name: "Request MapBox Token",        _description: "Requests a MapBox token for a user",        _namespaces: project._namespaces,        _userType: "mapbox_temp_token_orch_1",        _schemaversion: "2.0",        _instant: true,        _permissionprofileid: permProfile._id,        _params: {          tasks: [            {              name: "default_script_target",              _actualparams: {                userType: "iaf_mapbox",                _scriptName: "requestMapboxToken"              },              _sequenceno: 1,            },          ],        },      },      ctx    );    return mapboxTokenDsResult  },

  4. The Orchestrator's script, requestMapboxToken, in iaf_mapbox.js, first finds the Mapbox temp token config RelatedItem using a findWithRelated query, querying items related to the Mapbox config collection:

    async function requestMapboxToken(input, libraries, ctx) {  const { IafScriptEngine } = libraries;  const mapboxConfigQuery = {    parent: {      collectionDesc: {        _userType: "mapbox_config_coll",      },      options: {        page: {          getAllItems: true,        },        sort: {          '_metadata._createdAt': -1        }      },      query: {        _projId: input.actualParams.projId      },    },  };
  const mapboxConfigs = await IafScriptEngine.findWithRelated(    mapboxConfigQuery, ctx  );  ...}

    From the RelatedItem, the secret token, scopes, expiry, and username are extracted and passed to the generateTemporaryMapboxToken() function:

      {    ...    const latestConfig = mapboxConfigs._list[0];    const secret = latestConfig['._secret'];    const username = latestConfig._username;    const expiry = latestConfig._expiry;    const scopes = latestConfig._scopes;
    return await generateTemporaryMapboxToken(      secret,       scopes,       expiry,       username    );  }

    The generateTemporaryMapboxToken() function constructs and sends a fetch request to the Mapbox API with the required information:

    async function generateTemporaryMapboxToken(  secret,   scopes = [    MapboxScopes.STYLES_READ,    MapboxScopes.DATASETS_READ,    MapboxScopes.MAP_READ,    MapboxScopes.FONTS_READ,        MapboxScopes.TOKENS_WRITE            ],   expiresInSeconds = 3600,   username) {  const MAPBOX_SECRET_TOKEN = secret;  const MAPBOX_USERNAME = username;  const url = `https://api.mapbox.com/tokens/v2/${MAPBOX_USERNAME}`;  const expires = new Date(new Date().getTime() + expiresInSeconds * 1000).toISOString();
  const requestBody = {    expires,    scopes,    note: "Temporary token for IafViewer session"  };  const headers = {    Authorization: `Bearer ${MAPBOX_SECRET_TOKEN}`,    "Content-Type": "application/json"  };
  try {    return await fetch(url, {      method: "POST",      headers: headers,      body: JSON.stringify(requestBody)    });  } catch (err) {    console.error("Temp token Error:", JSON.stringify(err));    return null;  }}

  5. This token is set in state and passed as a parameter to the IafViewer:

      <div>    <IafViewerDBM      ...      gis={{        enabled: true, // Enables GIS features        token: this.props.mapboxToken,        onIafMapReady: (map) => this.props.enableGisDrawer?.(map)      }}    />  </div>
