REST Connectors

On the Admin page, project admins can run and view REST Connectors responses on the Admin page at the click of a button. REST Connectors can read data from different sources, such as model data, a BIMPK file, HAYSTACK, PostgreSQL, REST responses, and data aggregation platforms.

To view REST connectors as an admin, see Viewing REST connectors. To understand how this works in the ReferenceApp source code, see REST connector datasource.

Note: Permission profiles are assigned to orchestrators so that admins who do not have permissions for a given resource can still initiate the orchestrator. For more information, see Permission profile use case.

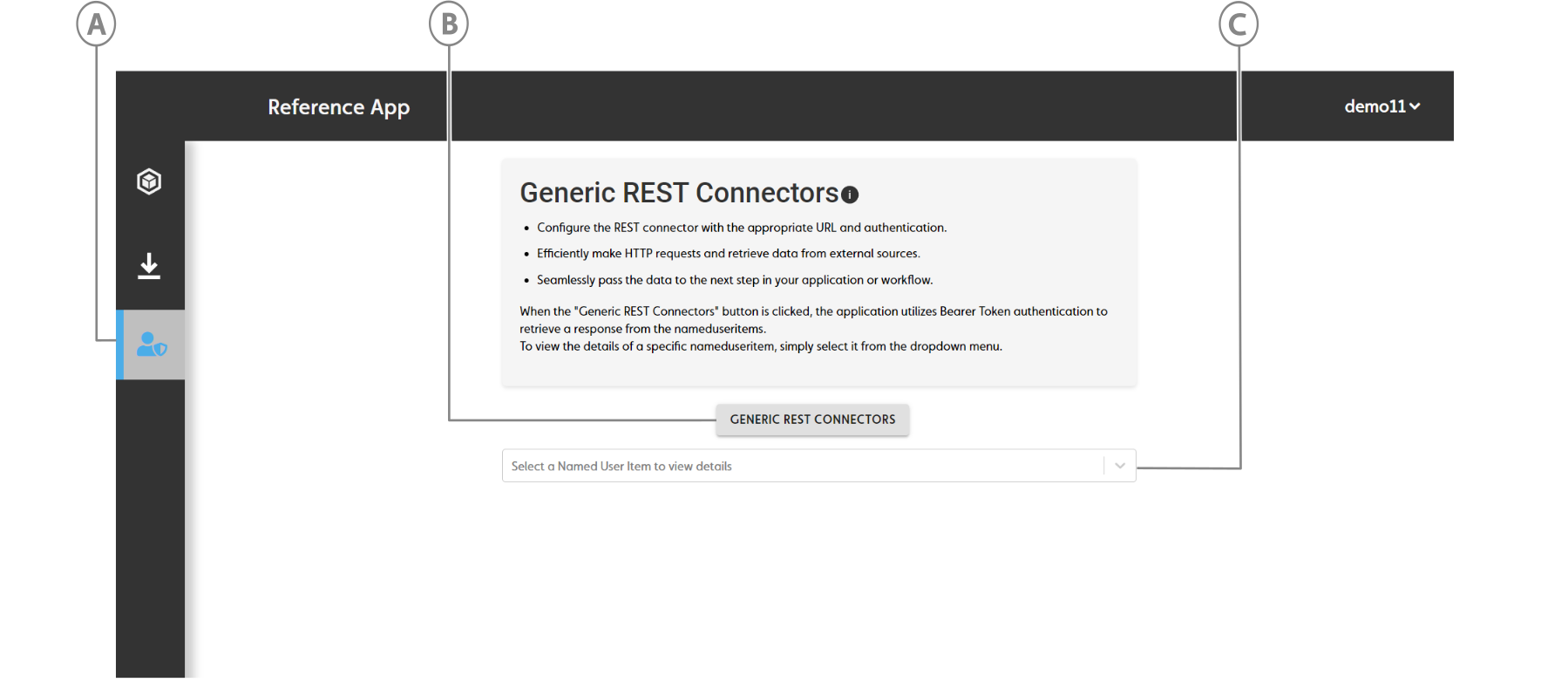

Figure: REST Connector on Admin page

Callout	Name	Description
A	Admin page	Click to open the Admin page
B	REST CONNECTOR button	Click to trigger an API that runs your REST connectors.
C	REST connectors dropdown	Select the response you want to view.

Viewing REST connectors

To view REST connectors, do the following:

1. From the sidebar, click the Admin icon.

2. On the Admin page, click GENERIC REST CONNECTORS. An API call triggers and the response displays below the button as a dropdown menu.

3. To view the REST Connector API call response, expand the dropdown menu. To expand the data structure, click EXPAND ALL; to collapse the data structure, click COLLAPSE ALL.

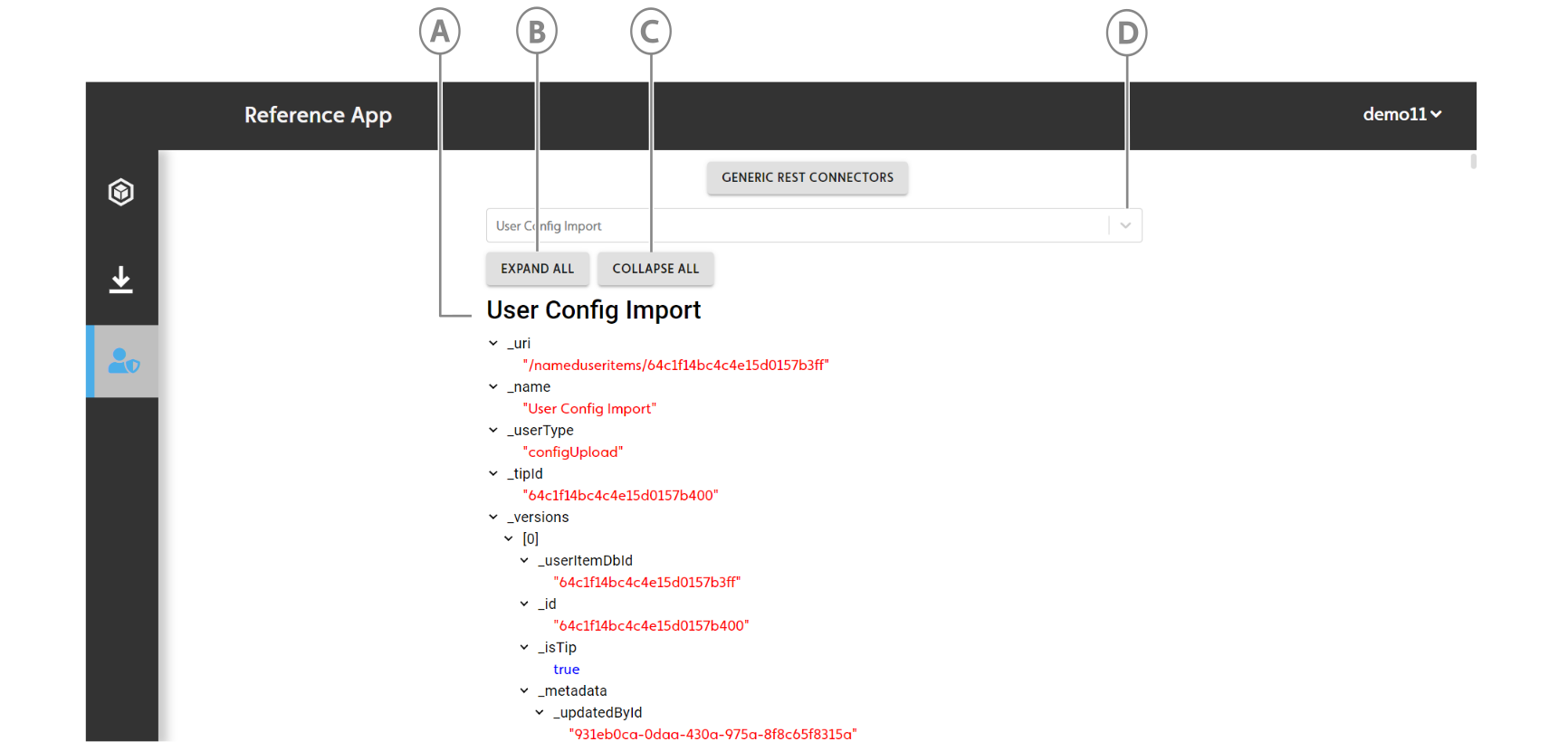

   Figure: REST Connector response

   Callout	Name	Description
   A	Response data structure	Click to open the Admin page
   B	EXPAND ALL button	Expand the data structure to view all of the data.
   C	COLLAPSE ALL button	Collapse the data structure.
   D	Response dropdown	Select the response you want to view.

REST connector datasource

With reference to the completed front-end, to ensure the button will trigger an API call, do the following:

1. The addDataSource() API call creates an orchestrator for the REST connector. For more information, see the following code example:


   let restConnector = await IafScriptEngine.addDatasource({  _name: "project_rest_connector",  _description: "Tester",  _namespaces: [    ctx._namespaces[0],  ],  _userType: "PROJECT_REST_CONNECTOR",  _instant: true,  _params: {    tasks: [      {        _orchcomp: "rest_connector",        _name: "Get assetts relationships from previous version",        _sequenceno: 1,        _actualparams: {          _scriptName: "restConnectors",          _url:             configurl.itemServiceOrigin +             "/itemsvc/api/v1/nameduseritems?nsfilter=" +             ctx._namespaces[0],          _auth: {            _type: "BearerToken",            _params: {              _token: token,            }          }        },        to: "json"      },    ]  }});


2. When the user interface button clicks, the IafScriptEngine.runDatasource() API calls, which runs the datasource.


   await IafScriptEngine.runDatasource({  orchestratorId: restConnector.orchestratorId})


3. The response stores in namedUserItemList and displays in a dropdown menu.
