Projects

Overview

The Projects options provide access to the main functions available for managing project models.

The Projects menu options are:

• Model
• Create
• View

Refer to the sections below for an explanation of each option.

Model

Click the Model option to select the current project model being displayed.

Create

Click the Create option to create a new project model.

To create a new project, do the following:

1. In the left side-bar menu, click Projects to expand the Projects options menu.
2. Click Create.

Figure: Create a Project dialog

3. In the Organization field, select an organization from the drop-down list.

4. In the Application field, select an application from the drop-down list.

5. In the Create a Project dialog window, enter the project name, short name and description.

6. If you are building against an Assets Intelligence App (AIA) project template, select the is AIA Project checkbox.

7. Click Create Project and a new project model will be created.

The new project model will automatically create the User Configs, Orchestrators, OMAPI and Scripts associated with any template selected.

View

Use the View option to view the other project models which are available and switch to one of them.

To switch to a new project model, do the following:

1. In the left side-bar menu, click Projects to expand the Projects options menu.
2. Click View.
3. In the View and Switch Project dialog box,in the Organization field, select an organization from the drop-down list.
4. In the Application field, select an application from the drop-down list.
5. In the Project field, select a project from the drop-down list. You will be presented with a list of projects to choose from.
6. Click the project you want to switch to, then click Switch Project.

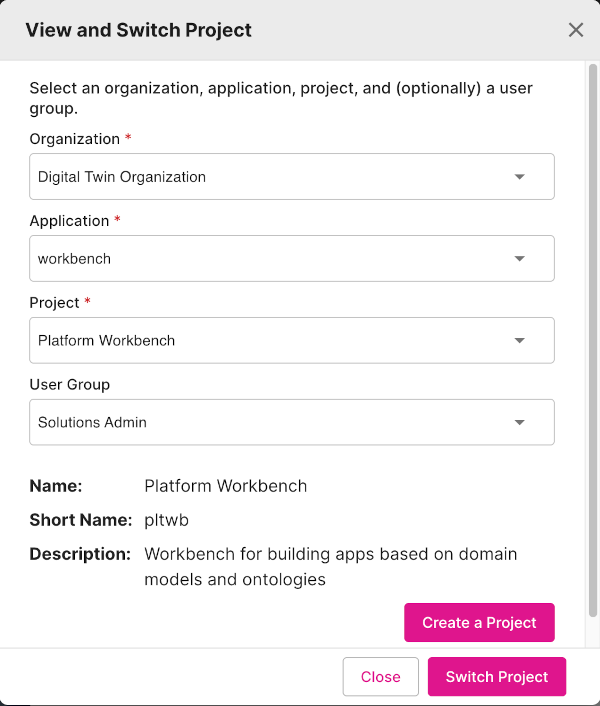

Figure: View and Switch Project dialog
