Polling loops with DO_WHILE

A workflow using a DO_WHILE task repeats a chain of tasks while a condition holds. Once a given condition is met the DO_WHILE tasks completes allowing the rest of the workflow tasks to proceed.

The Workflow#

The Weather_Alert_Polling_DoWhile worfklow sets up a polling workflow in a SCRIPT_EXECUTION task, then begins looping in a DO_WHILE task until a given number of loops have completed.

initialize_polling (SCRIPT_EXECUTION)   ← set up loop state  → poll_weather (DO_WHILE)             ← repeat the body while the condition holds       ├─ fetch_weather_update       └─ filter_and_log  → finalize_polling (SCRIPT_EXECUTION) ← wrap up

The DO_WHILE definition#

At the start of the Workflow Definition it declares a maxPolls input parameter with a default value of 3. Since this decalred as a Workflow _inputParam it can be used by any task in the Workflow and can be overridden a workflow runtime.

The workflow declares the bound maxPolls:

_inputParams: {    maxPolls: { type: "integer", value: 3 }}

THe DO_WHILE task below accepts the workflow parameter in it's own _inputParams. It also uses the maxPolls value in its _loopCondition to control how many times the tasks defined in _loopOver will execute.

{    _type: "DO_WHILE",    _name: "poll_weather",    _sequenceno: 2,    // Local binding so the JSONPath in _loopCondition can resolve $.maxPolls.    _inputParams: {        maxPolls: "${workflow.input.maxPolls}"    },    _loopCondition: "$.poll_weather.iteration < $.maxPolls",    _loopOver: [        { _type: "SCRIPT_EXECUTION", _name: "fetch_weather_update", _sequenceno: 1,          _retryCount: 2, _timeoutSeconds: 30,          _inputParams: { _userType: "weather_workflow_demo_static",                          _scriptName: "generateNewYorkWeatherData" } },        { _type: "SCRIPT_EXECUTION", _name: "filter_and_log", _sequenceno: 2,          _inputParams: { _userType: "weather_workflow_demo_static",                          _scriptName: "filterSignificantWeatherChanges",                          currentWeather: "${fetch_weather_update._output.scriptOutput}" } }    ]}

How the loop condition works#

Three details make this DO_WHILE task work:

  1. The body lives in _loopOver: an array of tasks, each with its own _sequenceno, just like a FORK_JOIN branch.
  2. The condition is a JSONPath expression evaluated against the task's own resolved _inputParams, using the $. form. That is why maxPolls is bound into this task's _inputParams (maxPolls: "${workflow.input.maxPolls}") and then referenced as $.maxPolls. A DO_WHILE condition reads from the task's local scope, not directly from ${workflow.input.*}.
  3. $.poll_weather.iteration is the runtime-maintained loop counter for this task. $.poll_weather.iteration < $.maxPolls therefore runs the body maxPolls times.

The filter-and-log body#

Inside the loop, filterSignificantWeatherChanges decides whether the reading is significant and logs accordingly (an inline Filter). It returns its decision as a string so that a SWITCH could compare it:

return {    isSignificant: isSignificant ? "true" : "false",  // string, not boolean    reason: ...,    data: currentWeather};

The practical guidance: Prefer flat DO_WHILE bodies made of SCRIPT_EXECUTION tasks. If a loop iteration needs to branch, make the decision inside a script rather than nesting a SWITCH (or other composite) inside _loopOver.

Run the Workflow#

  1. Run runWeatherWorkflow with input copying and pasting this value into the input field:

{ "workflowUserType": "weather_workflow_polling_static" }

  1. Monitor with getLatestWorkflowRunByUserType.

  2. Examine the Workflow output to see the results of the enriched weather data.

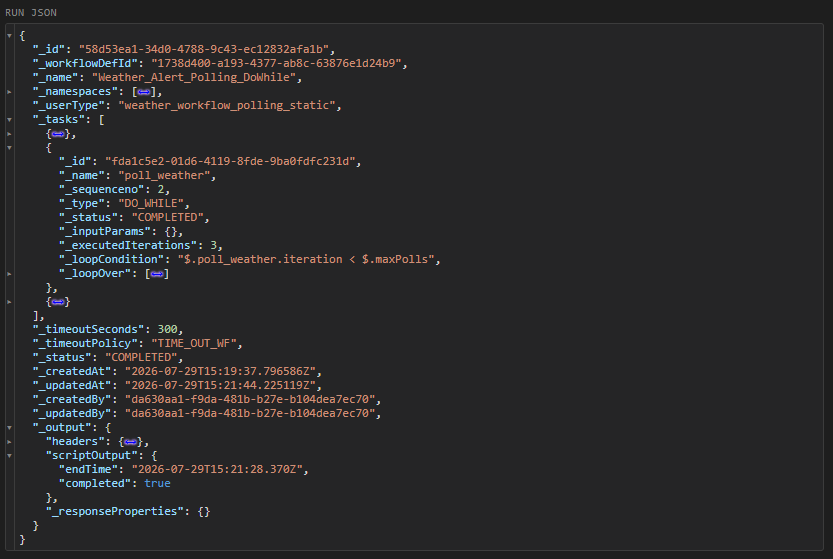

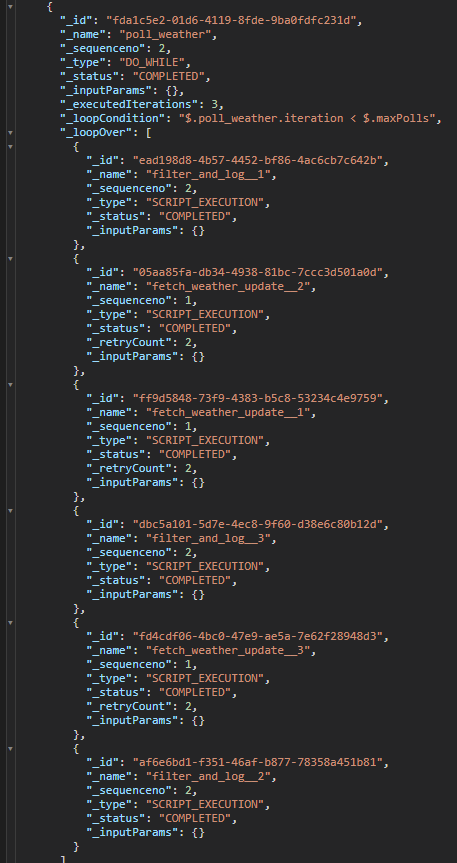

In the completed run, the poll_weather task shows its body executed maxPolls times, followed by finalize_polling.

Polling cadence in production#

With a real REST_CONNECTOR in the loop body, the polling cadence is controlled by task-level _retryLogic and _retryDelaySeconds, while the task's _timeoutSeconds caps the total wait for each attempt. The loop condition should then tests a status field on the response, e.g. status ∈ {success, failed}.
